10BBL Turnkey Brewing System

10BBL Turnkey Brewing System

10BBL 2-vessel brewhouses with HLT or 3 vessels (including HLT) brewhouse are the most purchased configuration consisting of a combination mash and lauter tun and a kettle and whirlpool vessel. From there you can explore a 3-vessel configuration by either separating the mash and lauter or kettle and whirlpool to a dedicated vessel.
For 10bbl brewhouse, the main heating methods are:
● Steam
We recommend this option for all size breweries if you are able to fit the costs in your budget and the equipment in your space. You get the best heating efficiencies and are able to utilize the steam in other areas of the brewery.

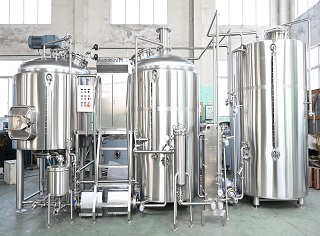

● Direct-Fire
We recommend direct-fire heating for brewhouses from 600L/5BBL to 15BBL as this gives enough area for the firebox under the vessels to work efficiently.

Advantages

Complete and High-Quality Configuration: Our beer brewing equipment boasts a complete, new, and high-quality configuration, ensuring a top-tier brewing experience.

Leading and Imported Brand Auxiliary Systems: The selection of auxiliary systems is carefully curated, featuring leading and imported brands. This guarantees the use of high-performance, long-life components with minimal loss for the brewery equipment.

Certified Stainless Steel Tanks: All tanks are constructed from certified stainless steel materials, including 304 and 316 grades. This ensures durability, sanitation, and the preservation of beer quality throughout the brewing process.

Compliance with International Standards: Our electrical accessories of beer brewing system adhere to international standards such as UL, cUL, CE, PED, and meet export standards. This commitment to compliance underscores our dedication to quality and safety for our commercial brewing equipment.

Tailored Voltage and Frequency Matching: The supporting auxiliary system is designed to match your standard precisely, ensuring compatibility with your specific voltage and frequency requirements. This attention to detail enhances the overall efficiency and performance of the brewing equipment.



Parameter

Standard Product Features of Commercial Beer Brewing System

Mash/Lauter tun

 Mash lauter tun w/ 30% head space

Top glass manway with logo options.

Hot/cold liquor blending pre grist hydrator.

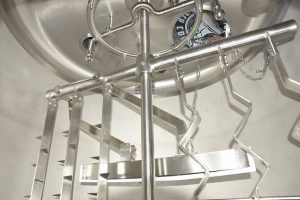

Motorized VFD reversible rakes & grain plow to aid with grain out.

Side steam jacket with push button heating control.

Internal LED lighting.

Sparge ring and vorlauf assembly.

Vorlauf sight glass.

False bottom – wedge wire. (3mm)

Multiple wort drain ports.

Thermo-well and PT100 Thermocouple.

Multiple CIP under flush ports.

20L SUS304 closed wort grant option.

CIP spray balls – 360⁰ coverage.

SUS304 Lifting Lugs.

4 SUS304 legs with levelling foot pads

Kettle/whirpool tun

Kettle/whirlpool combined vessel w/ 40% head space.

Top glass manway with logo options.

Bottom, side and top steam jackets with push button controls.

Internal LED lighting.

Tangential wort inlet.

1.5″ side wort drain, behind trub baffle.

2″ drain outlet.

CIP spray balls – 360⁰ coverage.

SUS304 Lifting Lugs.

4 SUS304 legs with levelling foot pads.

Pump

VFD sanitary centrifugal pump.

Made of 100% non-reactive, sanitary-finished, food-grade SUS304.

Specific sanitary centrifugal pump designs for brewhouses, HLT, CLT, keg washers, hop cannons and lenticular filtration units.

Standard flow rate of 10hL p/hr – 200hL p/hr.

Standard lift of 18M – 24M.

Brewhouse Components

Platform

SUS304 working platform, with stairs and safety railing.

2-Stage Heat Exchanger

Cold water and glycol stages for expedited knock out.

High efficiency knock down.

Easy cleaning and disassembly.

Back flush capabilities.

Set of spare plate gaskets included.

0² Oxygenation Assembly

Sanitary sinter stone.

SUS304 Ball valve & Gas quick connect.

Allows to connect to 0² for wort oxygenation.

Valves and Piping

SUS304 Sanitary fittings/valves/piping.

Brewhouse Electrical Control System

Brewhouse, HLT, CLT & GT central control system.

Controls for all VDF pumps.

Temp gauges and switches to monitor steam heating.
