500L electric brewhouse system for BrewCon2023

500L electric brewhouse system for BrewCon2023

NFE 500L electric brewhouse for the BrewCon 2023 at the Gold Coast Convention and Exhibition center on 21th-23th Aug, and booth no.: 69 th.
This brewhouse is electric heated, including mash/lauter tun, kettle/whirlpool tun, wort pump, IFM flow meter, wort grtant, hops back, plate heat exchanger, pipeline, valves and control panel.



1.Complete, new, and high quality configuration.
2. Auxiliary systems selection of leading and imported brand.
3. The auxiliary systems are long life, high-performance, high-quality, low-loss.
4. Certified stainless steel(304,316) material for all tanks.
5. Electrical accessories reach UL, cUL, CE, PED, export standards.
6. Supporting auxiliary system voltage and frequency match your standard exactly.

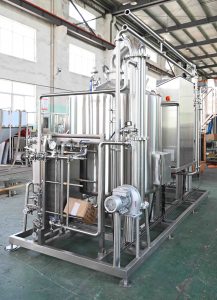

500L Electric skid mounted brewhouse:

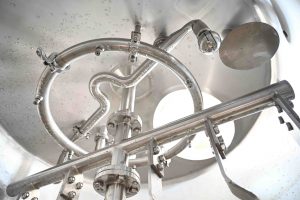

1.Mash/lauter – grist hydrator, false bottom, rake, sparging system

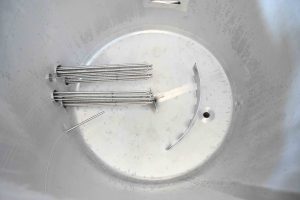

2.Wort kettle/whirlpool tun –electric heating, and heating power is 32kw, and there is one electric heating element for spare, tangential entry

3.Indoor steam condensation stack for boiling kettle
4.Wort Pumps with ABB motor(capacity: 5m3/hour and pump lift for 24meters)
5.Stainless steel 304 working platform
6.6m2 Plate heat exchanger – 304 plates, 2stages, with wort oxygenate system
7.Wort grant, hops back
8.Pipelines & valves

9.Manual button control system, CE Rated Controls and electrical components

10.Meet the Australian electric requirement for 415V, 50HZ, 3phases.
