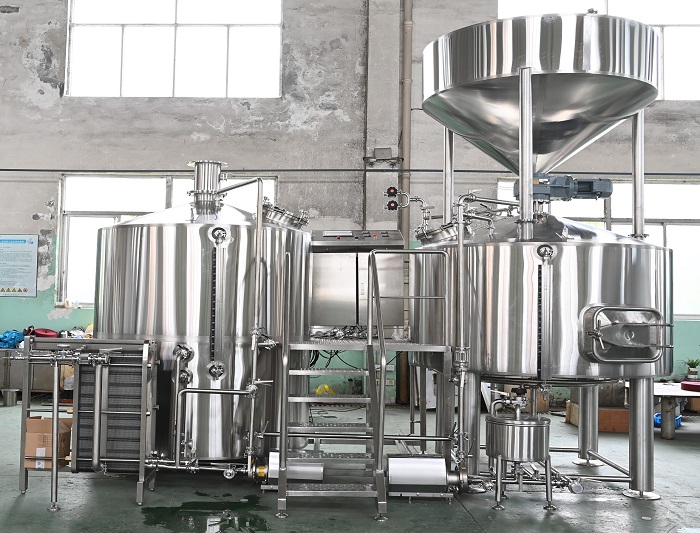

15bbl Direct Fired Brewing System

15bbl Direct Fired Brewing System

Direct fired brewing system, the kettle (where the wort is boiled) is typically equipped with a burner underneath that provides direct heat to the bottom of the kettle. The flame is typically fueled by natural gas, propane, or another type of fuel, direct fired brewing system is very popular used in commercial brewing operations.


1)All the tanks insulation use argon arc welding and inner tank will do pickling and passivation or mirror polishing;

2)Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts;
3) All the steam heating beer brewery tank will do water and pressure test when finishing. Pressure test is 2-4bar;
4) Closed grant system improves runoff performance;
5) Variable speed drives on pumps, motors and agitators;
6) Stainless steel work platform for integrity, no rusting and long life;
7)CAD layouts, installation assistance, assembly, training.


Standard product features:

  • 1 x Brew kettle / whirlpool vessel with direct fired heating
  • 1 x Mash / lauter tun vessel with side and bottom grain out doors
  • Kettle/whirlpool combined vessel w/ 40% head space
  • Top glass manway with logo options.
  • 1 x SS lauter rakes and grain out with variable speed control
  • 1 x DOUBLE brew length 304 SS HLT with direct fired heating or electric heating
  • 1 x DOUBLE brew length cold liquor tank with dual glycol jackets
  • 1 x SS work platform with sanitary process piping & sanitary valves
  • Sanitary wort pumps with variable speed control
  • 1 x SS HLT pump with variable speed control
  • 1 x SS CLT pump with variable speed control
  • Thermo-well and PT100 Thermocouple.
  • 1 x SS wort grant
  • 1 x Sanitary heat exchanger and wort aeration system
  • 1 x Water flow meter
  • 1.5″ Side wort drain, behind trub baffle
  • 2″ Drain outlet.
  • Mash/lauter tun with multiple wort drain ports and multiple CIP under flush ports
  • CIP spray balls – 360⁰ coverage.
  • SUS304 Lifting Lugs.
  • 4 SUS304 legs with leveling foot pads.
  • 1 x UL/CE/cUL Listed PLC Siemens Control System
  • Internal LED lighting.
  • 1 x Mash hydration assembly
  • 1 x Cellar package with brewers hoses, valves and fittings
  • 1 x SS grist hopper
  • 1 x grain auger
  • 1 x two roll malt mill
  • Fermenters/uni-tanks – DOUBLE brew length
  • Brite beer tank – DOUBLE brew length
  • 1 x Glycol chiller – outdoor unit
  • 1 x Cellar control panel with RTD & solenoid valves
  • 1 x Portable sanitary CIP/wort pump, SS cart & VFD controller
  • 1 x CAD layouts, installation assistance, assembly, training
  • 1 x Add Sink & Flash Chiller


  • Separate whirlpool vessel
  • Separate mash tun with mash mixer & mash pump
  • Extra capacity mash lauter tun
  • Platform Modifications for Future Vessels
