20BBL Beer Fermenting Vessel

20BBL Beer Fermenting Vessel

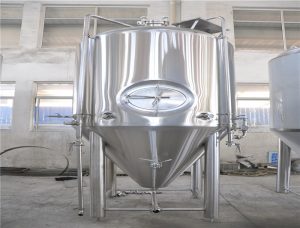

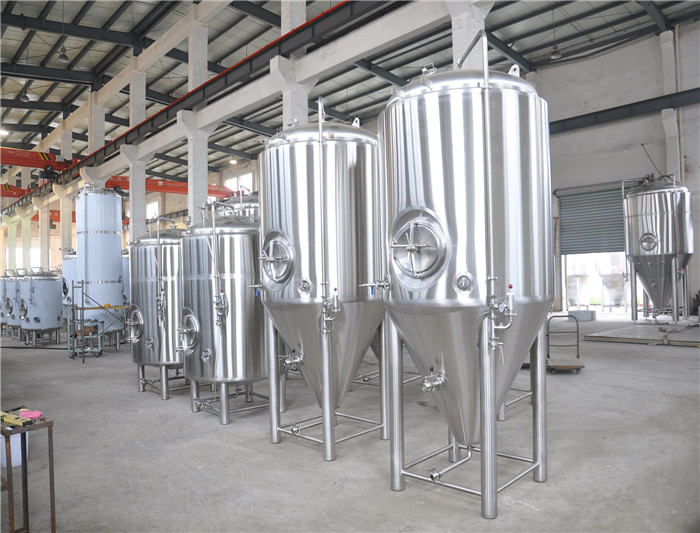

Fermentation tanks are also referred to as uni-tanks, which store wort and ferment the wort into beer. The fermentation tank is an essential part of breweries, from home-based breweries to large industrial breweries. These are cylindroconical tanks with an arched head for fermentation and post-fermentation of beer.

Made from 304 or 316L stainless steel coming with either dual or multi-zoned glycol jackets, NFE stainless steel conical fermentation tanks are the ultimate choice in fermenting wort into beer.


1) All the tanks insulation use argon arc welding and inner tank will do pickling and passivation or mirror polishing;
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) All the steam heating beer brewery tank will do water and pressure test when finishing. Pressure test is 2-4bar;
4) Dimple jackets are standard on insulated vessels, providing greater cooling efficiency and added vessel integrity.
5)All fermenting vessels feature jackets on the cone for greater cooling efficiency.
6) Fermentation vessels have half batch capabilities.

  • Fermentation vessel w/ 25% head space.
  • Design pressure 15psi or 1bar.
  • Interior shell: SUS304, thickness 3mm.
  • Exterior shell: SUS304, thickness 2mm.
  • Interior and exterior finish bright polish to 2B, hygienic surface.
  • 60° conical cone bottom.
  • Racking port and discharge port with butterfly valve and fittings.
  • Side or Top man way door, shadowless.
  • Dimple glycol cooling jackets with glycol inlets and outlets.
  • Polyurethane foam insulation, thickness 80mm/>3” on side and bottom.
  • Fully welded exterior shell.
  • 4 legs with levelling foot pads.
  • CIP arm and spray ball.
  • Rotating racking arm.
  • Vacuum relief at 0.3psi.
  • Pressure relief valve at 30psi as standard.
  • Sanitary pressure gauge.
  • Perlick style sample valve.
  • Tank complete with fittings, valves, and all parts.
  • Lifting Lugs.
  • Thermowell.
  • P100 temperature sensor.
  • 24V DC liquid solenoid valve.







Fermentation tanks

Interior and exterior finish polished to a sanitary finish

Interior finish pickled and passivated

Exterior brushed, #4 finish

Fully welded exterior shell

60 degree cone bottom, with an average of 25% head space

Rotating racking port

Glycol cooling jacket on cone and bottom
Side or top manway
CIP arm and CO2 blow off arm for maximum tank space utilization
Germany import Kieselmann Mechanical relief valve
Shockproof pressure gauge
CIP arm and spray ball
Dry hop port 4-6”
Carbonation stone

Inoxpa butterfly valves, sample valve,

2” pressure vacuum relief valve

RTD Probe

Tension braces on legs

Sanitary tri-clamp connections
