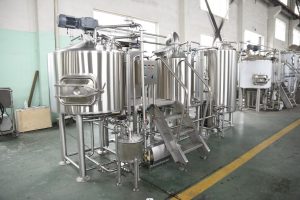

3.5BBL Brewing System
3BBL electric brewing system is suitable for small craft breweries, brewpubs, and taprooms.
1) All the tanks insulation use argon arc welding and inner tank will do pickling and passivation or mirror polishing;
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts;
3) All the steam heating beer brewery tank will do water and pressure test when finishing. Pressure test is 2-4bar;
4) Closed grant system improves runoff performance;
5) Variable speed drives on pumps, motors and agitators;
6) Stainless steel work platform for integrity, no rusting and long life.
Contact
E-mailAdvantages
NFE brewhouses come in a variety of different configurations and flavours which have been driven by our clients requirements and creativity as port locations, port sizes, vessel dimensions, etc. are tweaked to clients’ needs.
Our 2-vessel brewhouses are the most purchased configuration consisting of a combination mash and lauter tun and a kettle and whirlpool vessel. From there you can explore a 3-vessel configuration by either separating the mash and lauter or kettle and whirlpool to a dedicated vessel.
Each brewer has their own preference and we respect that. If you want to increase output you can separate each step of the process to their own dedicated vessel and really push some volume.
We produce our brewing equipment to the absolute highest standard – because the quality of equipment can really make a huge difference to your product – and overall success of your brewery.
Parameter
|
No. |
Name |
Components |
Specification |
|
1 |
Grain Milling Unit |
Rolling Miller |
Stainless steel, Double roller, rollers distance adjustable |
|
Grain auger |
Conveys grist from malt mill to grist case; Inside stainless screw, outside PPR protection tube; Associated motor with frequency conversion |
||
|
SS grist hopper |
Stainless steel304 |
||
|
2 |
Brewhouse unit |
Mash/Lauter tun |

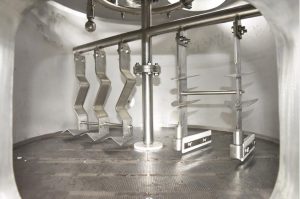

Grain rake with VFD With side grain out door Tank light assemblies Mash hydration assembly Rotary CIP spray balls Level sight tube |
|

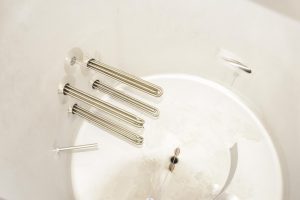

Kettle/Whirlpool Tun |
Steam Jacket /direct gas fired heating/electric heating Tank light assemblies Rotary CIP spray balls Tangential whirlpool entry Level sight tube |
||
|
Wort pump |
Sanitary wort pumps with variable speed control |
||
|
Working platform |
OSHA compliant platforms with safety railings & stairs, Cellar package with brewers hoses, valves and fittings |
||
|
Hot liquor tank |
Steam Jacket heating/direct gas fired heating/electric heating Sight gauge for water level With SS HLT pump with variable speed control |
||
|
Heat exchanger |
SUS304/316 plate, with wort aeration system |
||
|
3 |
Fermentation unit |
Fermenter |

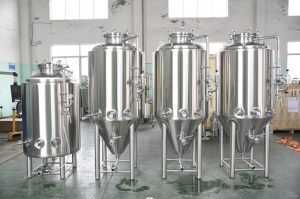

Interior and exterior finish polished to a sanitary finish Interior finish pickled and passivated Exterior brushed, #4 finish Fully welded exterior shell 60 degree cone bottom, with an average of 25% head space Rotating racking port Glycol cooling jacket on cone and bottom Inoxpa butterfly valves, sample valve, 2” pressure vacuum relief valve RTD Probe Tension braces on legs Sanitary tri-clamp connections |
|
4 |
Bright beer tank |
Bright beer tank |
Inoxpa butterfly valves, Perlick sample valve Micromatic level gauge, PVRV Clamps and gaskets, pressure gauge, carb stone Stainless steel legs with stainless leveling footpads Interior shell: 304 stainless steel, thickness 3mm Exterior shell: 304 stainless steel, thickness 2mm Interior and exterior finish polished to a sanitary finish Interior finish pickled and passivated Exterior brushed, #4 finish Fully welded exterior shell Dished top and bottom, with an average of 15%-20% head space Carbonation port Side or top manway door, Dimple jacket cooling jackets Polyurethane insulation Level gauge connections CIP arm and spray ball Sanitary tri-clamp connections |
|
5 |
Glycol Chilling Unit |
Glycol Water Tank |
Insulated conical top and sloped bottom Liquid level sight tube for water level Rotating CIP spray ball |
|
Cold Water Tank |
Cooling jacket on tank with PU insulation Liquid level sight tube for water level Rotating CIP spray ball |
||
|
Glycol Chiller |
Assembly unit, wind cooling, environmental refrigerant: R404a, compressors and electrical components meet UL/cUL/CE certified |
||
|
6 |
Control unit |
Brewing and fermentation process Controlling |
Manual button control panel or PLC control with touch screen for special, control panel with RTD & solenoid valves |
|
7 |
CIP |
Caustic Tank |
electric heating element inside |
|
Sterilization Tank |
Stainless steel 304 |
||
|
Transfer&Control |
Portable sanitary CIP/wort pump, SS cart & VFD controller |
