3BBL Jacketed Horizontal Lagering Tanks

3BBL Jacketed Horizontal Lagering Tanks

Our industry-leading brite tanks are available ranging in size from 3 BBL to 200 BBL. Contact us today for more information on how we can help you Brew Better Beer.


Certified stainless steel material. Sanitary construction with 100% TIG welded joints and seams with sanitary interior polish. All tanks and jackets inspected and pressure tested to 2 times operating pressure. All tanks insulated with high efficiency polyurethane foam. We can custom fabricate any tank to meet your brewery’s space and height restrictions. Tank design pressure is 30-45PSI.

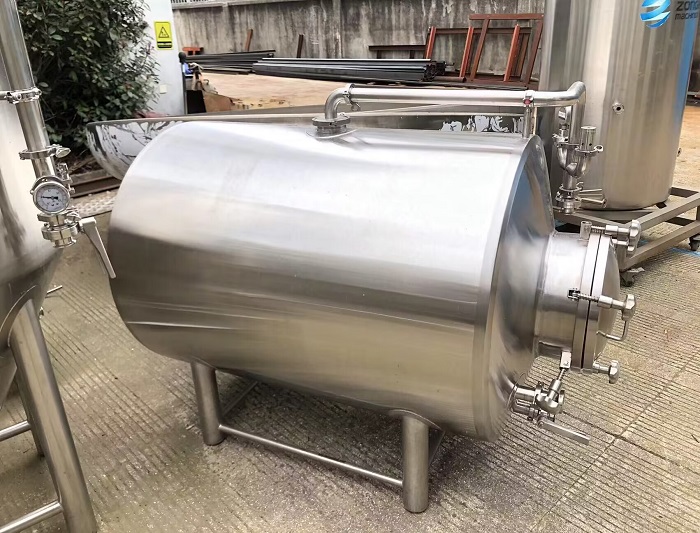

jacketed horizontal lagering tanks

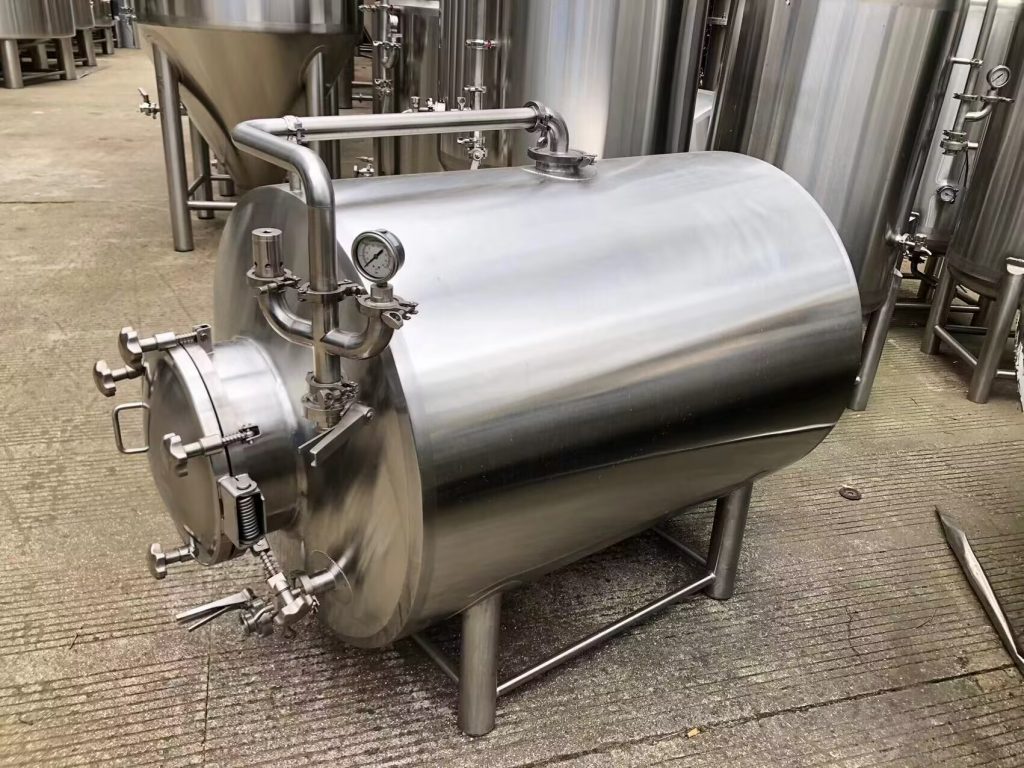

3bbl jacked horizontal lagering tanks


  • Inoxpa butterfly valves, Perlick sample valve
  • level gauge, 2”PVRV
  • Clamps and gaskets, pressure gauge, carb stone
  • Stainless steel legs with stainless leveling footpads
  • Interior shell: 304 stainless steel
  • Exterior shell: 304 stainless steel
  • Interior and exterior finish polished to a sanitary finish
  • Interior finish pickled and passivated
  • Exterior brushed
  • Fully welded exterior shell
  • Dished top and bottom, with an average of 20% head space
  • 1.5”Carbonation port
  • Top manway door
  • Dimple jacket cooling jackets
  • 80mm Polyurethane insulation
  • Level gauge connections
  • CIP arm and spray ball
  • Sanitary tri-clamp connections
