4BBL Brewpub & Pilot Brewing System

4BBL Brewpub & Pilot Brewing System

Complete line of small scale brewpub & pilot brewing system for brewpub & small brewery.2BBL-5BBL breweries.


1.Complete, new, and high quality configuration.
2. Auxiliary systems selection of leading and imported brand.
3. The auxiliary systems are long life, high-performance, high-quality, low-loss.
4. Certified stainless steel(304,316) material for all tanks.
5. Electrical accessories reach UL, cUL, CE, PED, export standards.
6. Supporting auxiliary system voltage and frequency match your standard exactly.

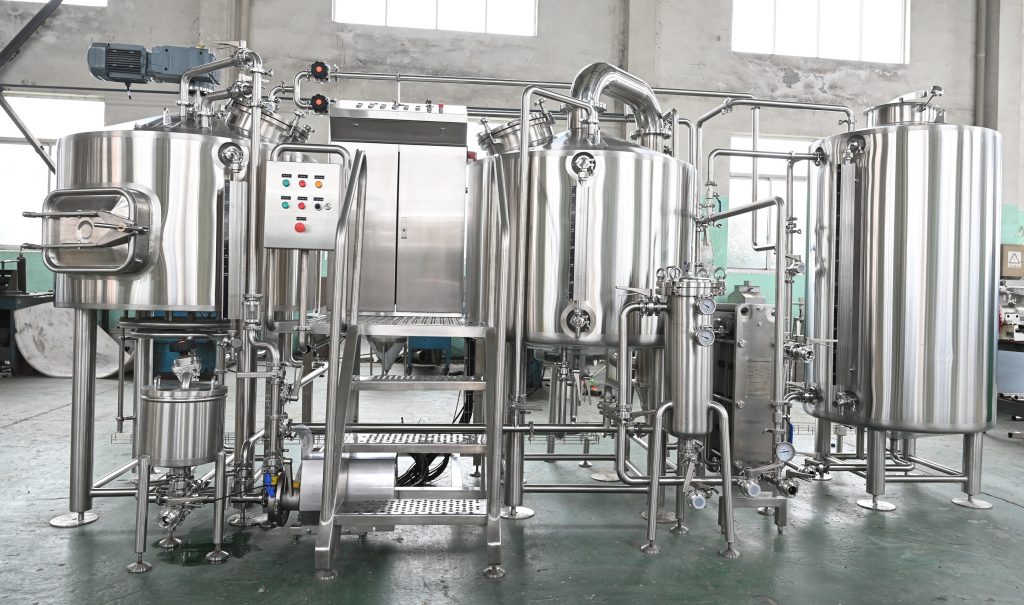

4BBL Brewpub&pilot electric/steam brewing system

Standard product features:

1 x Direct fired/electric/steam heated brew kettle/whirlpool vessel

1 x Mash lauter tun w/ 30% head space

Thermo-well and PT100 Thermocouple

1 x SS work platform with sanitary process piping & sanitary valves

1 x Sanitary wort pump with variable speed control

1 x Sanitary heat exchanger and wort aeration system

1 x UL/CE/cUL Listed control panel

Top glass manway with logo

2 x Tank light assemblies

1 x Mash hydration assembly

1 x Cellar package with brewers hoses, valves & fittings

1 x two roll malt mill


Brite beer tanks

CIP spray balls – 360⁰ coverage.

SUS304 Lifting Lugs.

4 SUS304 legs with levelling foot pads

1 x Glycol chiller – outdoor unit (excluding International)

1 x Cellar control panel with RTD & solenoid valves

1 x Portable sanitary CIP/wort pump, SS cart & VFD controller

1 x CAD layouts, installation assistance, assembly, training


Multiple batch configuration

Lauter rakes & grain out plows

Extra capacity mash lauter tun

Magnetic flow meter


Kettle condensing vent stack
