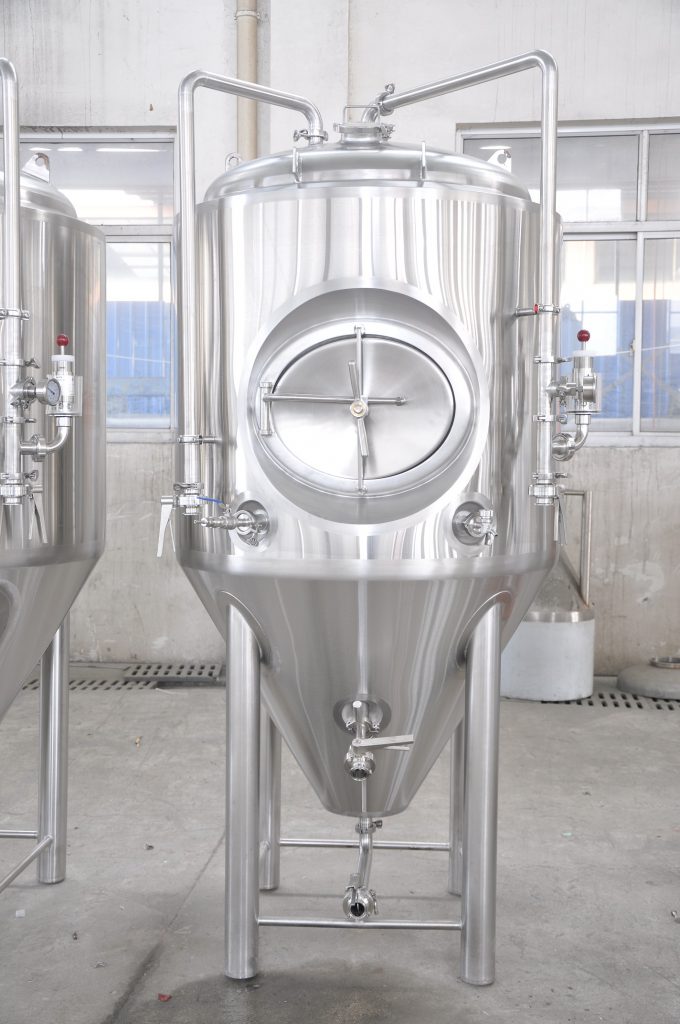

600L Conical Fermentation Tank/Stainless Steel Fermenting Tanks/Beer Unitanks
A 600L conical fermentation tank refers to a vessel used in the beer brewing process to ferment and condition the beer. The "600L" indicates the tank's capacity, which is 600 liters. This type of fermentation tank is commonly used in craft breweries and small to medium-scale beer production operations.
Contact
E-mailAdvantages
Certified stainless steel material. Sanitary construction with 100% TIG welded joints and seams with sanitary interior polish. All tanks and jackets inspected and pressure tested to 2 times operating pressure. All tanks insulated with high efficiency polyurethane foam. We can custom fabricate any tank to meet your brewery’s space and height restrictions. Tank design pressure is 30 PSI or 2bar.
Parameter
Product Brief Introduction：
Our conical fermentation tanks are designed specifically to meet unique and diverse brewing requirements. Whether small or large volume, our knowledge of the brewing process, customization capabilities and quality craftsmanship combine to satisfy the needs of the most discerning and demanding brewers. Our industry-leading uni-tank fermenters are available ranging in size from 1 BBL to 300 BBL.
Standard product features:
Conical Fermentation vessel w/ 25% head space.
Design pressure 30psi or 2bar.
Interior shell: SUS304, thickness 3mm.
Exterior shell: SUS304, thickness 2mm.
Interior and exterior finish bright polish to 2B, hygienic surface.
60° conical cone bottom.
Racking port and discharge port with butterfly valve and fittings.
Side or Top man way door.
Dimple glycol cooling jackets with glycol inlets and outlets.
Polyurethane foam insulation, thickness 80mm/>3” on side and bottom.
Fully welded exterior shell.
4 legs with levelling foot pads.
CIP arm and spray ball.
Rotating racking arm.
Vacuum relief at 2bar.
Pressure relief valve at 30psi as standard.
Sanitary pressure gauge.
1.5”Sample valve.
4” Hop port
1.5” Carbonation Stone
Tank complete with fittings, valves, and all parts.
Lifting Lugs.
Thermowell.
P100 temperature sensor.
24V DC liquid solenoid valve.
OPTIONS:
Additional blow off pipework.
Larger drain ports.
Glycol pipework.
