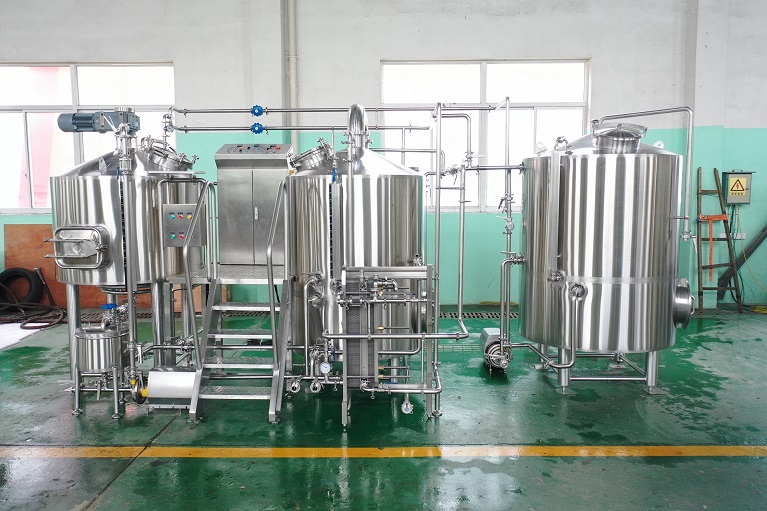

600L Beer Brewing System
Nano brewing system is a small-scale brewing system designed for producing beer in small batches, typically ranging from 1 to 5 barrels (31 to 155 gallons) at a time. They are commonly used by craft breweries, brewpubs, and home brewers who are looking to produce a limited quantity of beer for local consumption or experimentation.
Contact
E-mailAdvantages
1.Complete, new, and high quality configuration.
2. Auxiliary systems selection of leading and imported brand.
3.The auxiliary systems are long life, high-performance, high-quality, low-loss.
4.Certified stainless steel(304,316) material for all tanks.
5.Electrical accessories reach UL, cUL, CE, PED, export standards.
6.Supporting auxiliary system voltage and frequency match your standard exactly.
7.New production techniques.
8.Stable quality, high performance, strict quality control.
9.All the equipment are adopted 100%TIG welded joints, mirror Polishing.
10.CAD layouts, installation assistance, assembly, training.
Our highly experienced team will be there for you every step of the way. From designing commercial brewing equipment layouts, individual drawings and manufacturing, to installation, commissioning and on-site training. We can even help with an initial brew with your new system if required.
Parameter

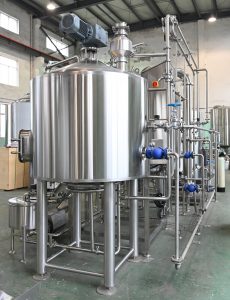

Mash/lauter tun:
- Mash lauter tun w/ 30% head space.
- Top glass manway with logo options.
- Hot/cold liquor blending pre grist hydrator.
- Motorized VFD reversible rakes & grain plow to aid with grain out.
- Side steam jacket with push button heating control.
- Internal LED lighting.
- Sparge ring and vorlauf assembly.
- Vorlauf sight glass.
- False bottom – wedge wire. (3mm)
- Multiple wort drain ports.
- Thermo-well and PT100 Thermocouple.
- Multiple CIP under flush ports.

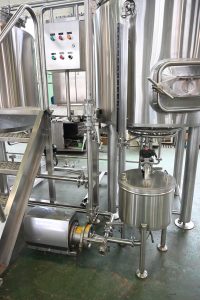

- 20L SUS304 closed wort grant option.
- CIP spray balls – 360⁰ coverage.
- SUS304 Lifting Lugs.
- 4 SUS304 legs with levelling foot pads
Kettle/whirlpool tank:
- Kettle/whirlpool combined vessel w/ 40% head space.
- Top glass manway with logo options.
- Bottom, side and top steam jackets with push button controls.
- Internal LED lighting.
- Tangential wort inlet.
- 5″ side wort drain, behind trub baffle.
- 2″ drain outlet.
- CIP spray balls – 360⁰ coverage.
- Steam Condenser Stack Kettle steam condenser.
- Dual water condensing/suction fan.
- SUS304 Lifting Lugs.
- 4 SUS304 legs with levelling foot pads.

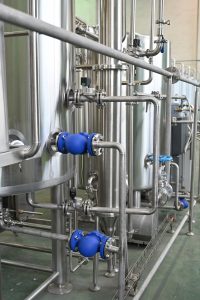

Pump:
- VFD sanitary centrifugal pump.
- Made of 100% non-reactive, sanitary-finished, food-grade SUS304.
- Specific sanitary centrifugal pump designs for brewhouses, HLT, CLT, keg washers, hop cannons and lenticular filtration units.
- Standard flow rate of 10hL p/hr – 200hL p/hr.
- Standard lift of 18M – 24M.
Platform:
- SUS304 working platform, with stairs and safety railing.

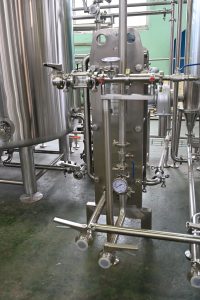

2-Stage Heat Exchanger
- Cold water and glycol stages for expedited knock out.
- High efficiency knock down.
- Easy cleaning and disassembly.
- Back flush capabilities.
- Set of spare plate gaskets included.
0² Oxygenation Assembly
- Sanitary sinter stone.
- SUS304 Ball valve & Gas quick connect.
- Allows to connect to 0² for wort oxygenation.
Valves and Piping
- SUS304 Sanitary fittings/valves/piping.
Brewhouse Electrical Control System
- Brewhouse, HLT, CLT & GT central control system.
- Controls for all VDF pumps.
- Temp gauges and switches to monitor steam heating.
