Malt Milling Machine

Malt Milling Machine

Grain mills are an essential piece of equipment for commercial breweries, giving you the ability to purchase bulk grain and utilize the malt mill for milling when required. Using a malt mill not only allows you to keep your raw material costs down but using the grain as soon as crushed ensures the freshest flavors going into your mash and ultimately your final product.

Advantages

Pre-milled malt can quickly deteriorate over time, and depending on the batch from your maltster or supplier, you may not be getting the freshest grains available. Having a malt mill and milling on the day or even a day before brew day helps keep the malt at its freshest.

Important Reminder: Depending on your country’s requirements, you may need to look into milling operations. Some countries require explosion-proof mill rooms and explosion-proof motors. As a safety measure, NFE brewing Solutions malt mills can be equipped with explosion-proof motors for the ultimate safety assurance.

Parameter

No.

Name

Components

Specification

1

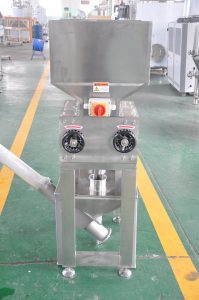

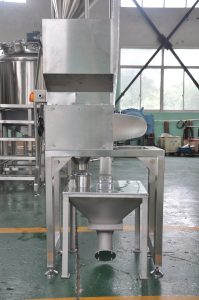

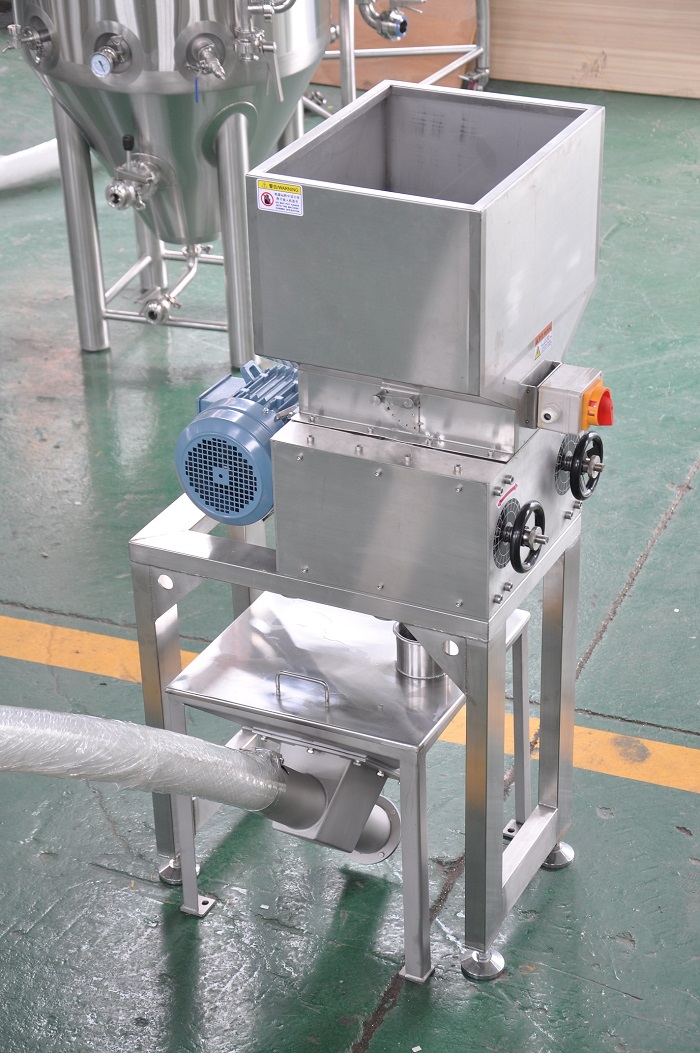

Grain Milling Unit

Rolling Miller

Stainless steel, Double roller, rollers distance adjustable

Grain auger

Conveys grist from malt mill to grist case;

Inside stainless screw, outside PPR protection tube;

Associated motor with frequency conversion

SS grist hopper

Stainless steel304

2

Brewhouse unit

Mash/Lauter tun

Grain rake with VFD
Laser cutting V-wire False Bottom
Easy clean and detachable sparging spray ring
Multihole wort collect ring, anti-rinser

With side grain out door

Tank light assemblies

Mash hydration assembly

Rotary CIP spray balls

Level sight tube

Kettle/Whirlpool Tun

Steam Jacket /direct gas fired heating/electric heating
Steam vent with condensate ring for kettle stack

Tank light assemblies

Rotary CIP spray balls

Tangential whirlpool entry

Level sight tube

Wort pump

Sanitary wort pumps with variable speed control

Working platform

·         OSHA compliant platforms with safety railings & stairs, Cellar package with brewers hoses, valves and fittings

Hot liquor tank

Steam Jacket heating/direct gas fired heating/electric heating

Sight gauge for water level

With SS HLT pump with variable speed control

Heat exchanger

SUS304/316 plate, with wort aeration system

3

Fermentation unit

Fermenter

Interior and exterior finish polished to a sanitary finish

Interior finish pickled and passivated

Exterior brushed, #4 finish

Fully welded exterior shell

60 degree cone bottom, with an average of 25% head space

Rotating racking port

Glycol cooling jacket on cone and bottom
Side or top manway
CIP arm and CO2 blow off arm for maximum tank space utilization
Germany import Kieselmann Mechanical relief valve
Shockproof pressure gauge
CIP arm and spray ball
Dry hop port 4-6”
Carbonation stone

Inoxpa butterfly valves, sample valve,

2” pressure vacuum relief valve

RTD Probe

Tension braces on legs

Sanitary tri-clamp connections

4

Bright beer tank

Bright beer tank

Inoxpa butterfly valves, Perlick sample valve

Micromatic level gauge, PVRV

Clamps and gaskets, pressure gauge, carb stone

Stainless steel legs with stainless leveling footpads

Interior shell: 304 stainless steel, thickness 3mm

Exterior shell: 304 stainless steel, thickness 2mm

Interior and exterior finish polished to a sanitary finish

Interior finish pickled and passivated

Exterior brushed, #4 finish

Fully welded exterior shell

Dished top and bottom, with an average of 15%-20% head space

Carbonation port

Side or top manway door,

Dimple jacket cooling jackets

Polyurethane insulation

Level gauge connections

CIP arm and spray ball

Sanitary tri-clamp connections

5

Glycol Chilling Unit

Glycol Water Tank

Insulated conical top and sloped bottom

Liquid level sight tube for water level

Rotating CIP spray ball

Cold Water Tank

Cooling jacket on tank with PU insulation

Liquid level sight tube for water level

Rotating CIP spray ball

Glycol Chiller

Assembly unit, wind cooling, environmental refrigerant: R404a, compressors and electrical components meet UL/cUL/CE certified

6

Control unit

Brewing and fermentation process Controlling

Manual button control panel or PLC control with touch screen for special, control panel with RTD & solenoid valves

7

CIP

Caustic Tank

electric heating element inside

Sterilization Tank

Stainless steel 304



Transfer&Control

Portable sanitary CIP/wort pump, SS cart & VFD controller
