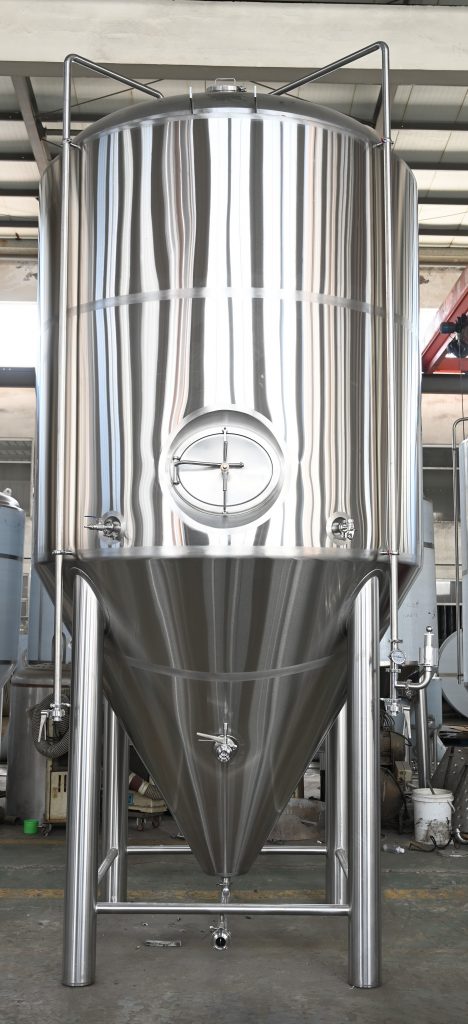

The specification for our 60bbl beer fermenters as follows:

1.Sanitary Stainless steel 304;

2.Effective capacity: 60BBL;25% headspace;

3.Dome top head, cone bottom;

4.Surface brushed, welding line polish sanding light belt;

5.Polyurethane insulation, thickness: 80mm;

6.Inner body thickness 3mm, cladding thickness 2mm;

7.Double dimple plate cooling jackets(on wall and cone);

8.Side manway;

9.With rotary CIP spray balls and arm;

10.Pt100 temperature sensor;

11.4’’Dry hopping port on top head;

12.1.5’’Sample valve in the cylinder;

13.Separate outlets for yeast and clear beer, beer racking arm located in the conical part of the tank;

14.2’’PVRV;

15.Spunding valve;

16.Pressure gauge;

17.1.5’’Carbonation stone;

18.2ladder hooks;

19.Working pressure is 2bar and testing pressure is 3bar;

20.Stainless steel legs with bigger and thicker base plate, with screw assembly to adjust leg height;

21.Complete with associated valves and fittings.

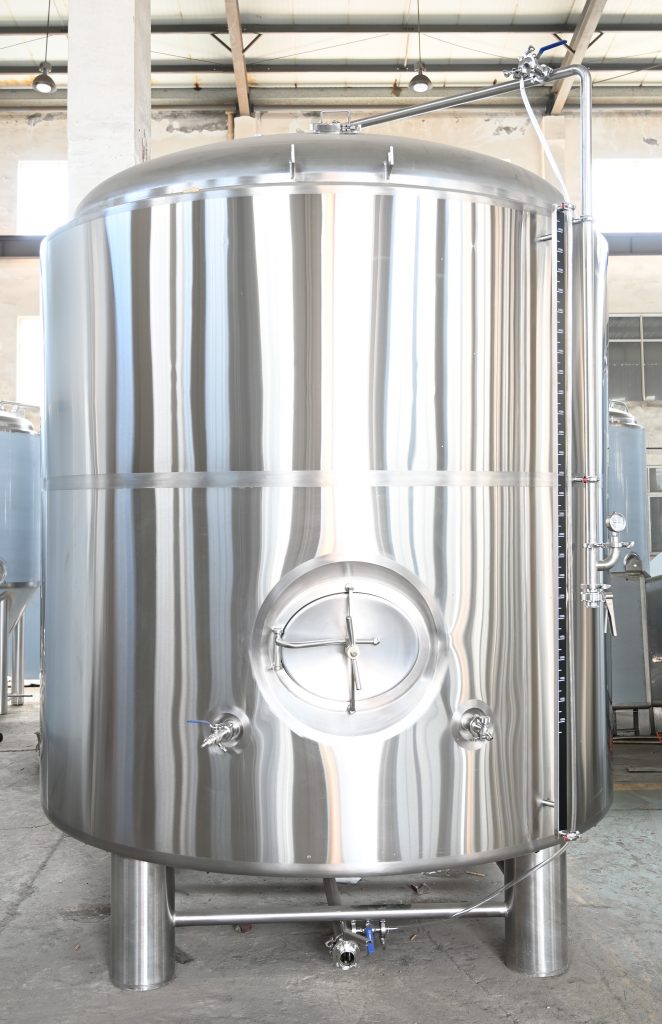

The specification for our 60bbl brite tanks as follows:

1.Sanitary Stainless steel 304

2.Effective capacity:60BBL and total capacity:8340L;

3.Outer dimension:￠2300mmx3200mm,

4.Dome top head and dome bottom;

5.Surface brushed, welding line polish sanding light belt;

6.Polyurethane insulation, thickness: 80mm;

7.Inner body thickness 3mm, cladding thickness 2mm;

8.Dimple plate cooling jacket;

9.Working pressure:2bar, testing pressure:3bar;

10.2’’PVRV;

11.Side manway;

12.With rotary CIP spray balls and arm;

13.PT100 temperature sensor;

14.1.5’’Sample valve in the cylinder;

15.2ladder hooks,

16.Pressure gauge;

17.Liquid level meter;

18.1.5’’Carbonation stone;

19.Stainless steel legs with bigger and thicker base plate, with screw assembly to adjust leg height;

20.Complete with associated valves and fittings.

NFE people will keep working hard to provide high quality products and service to microbreweries worldwide!
