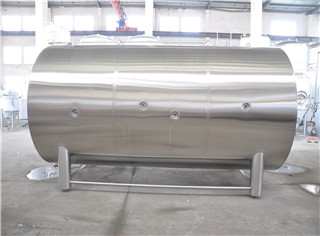

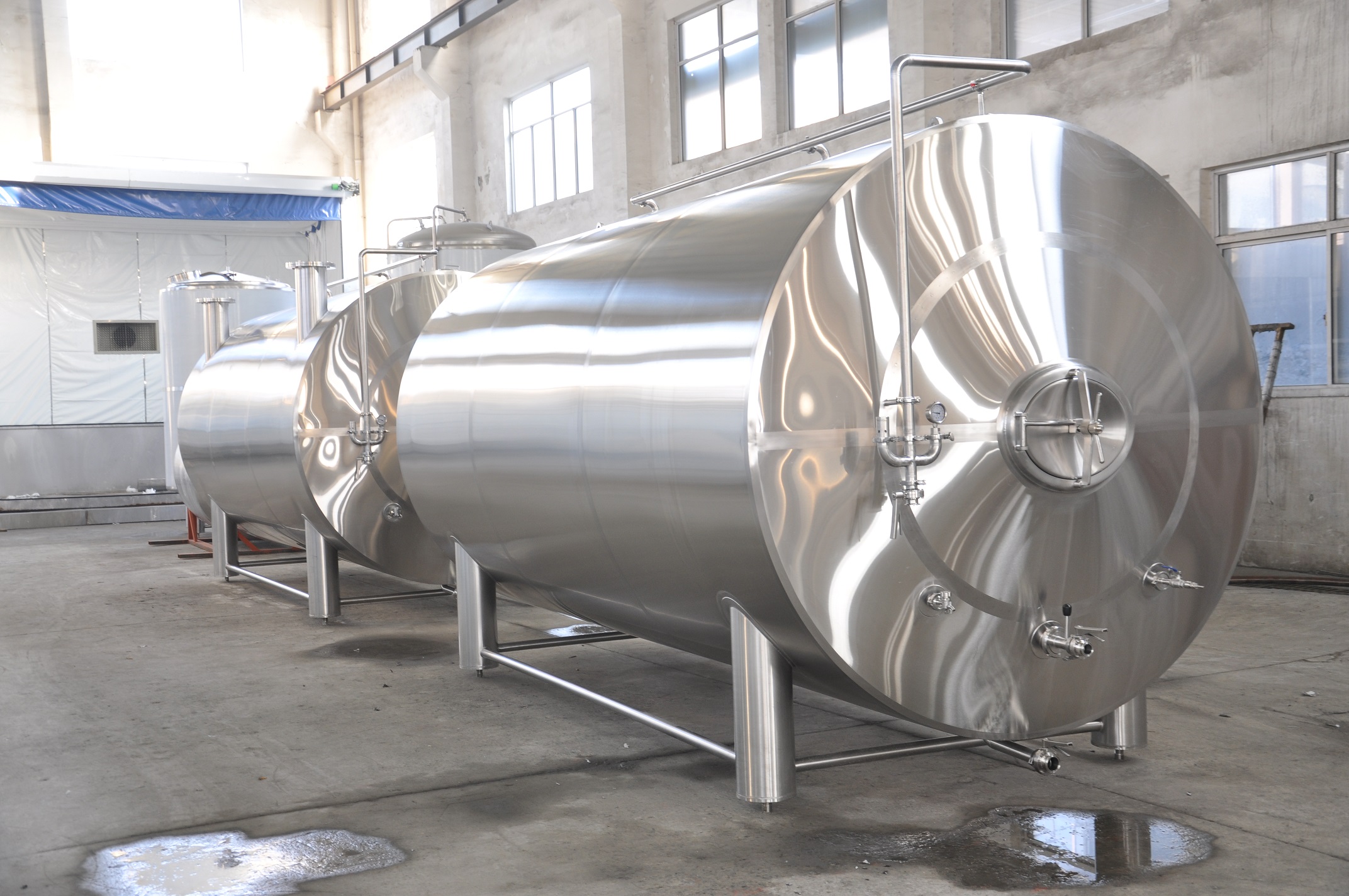

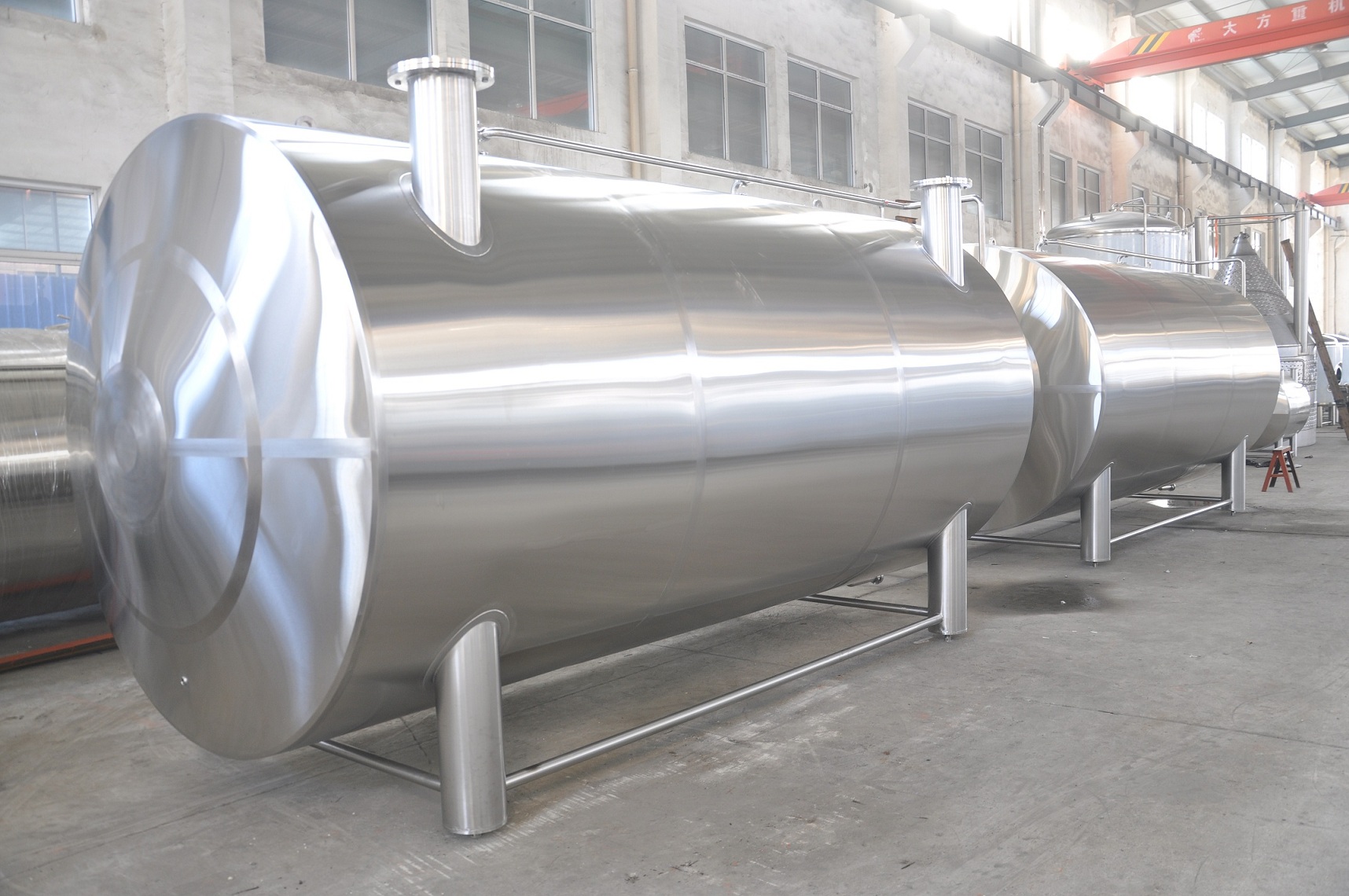

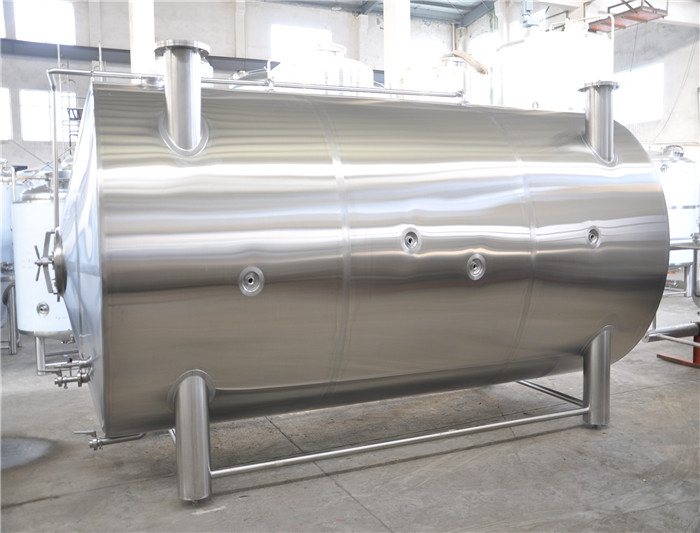

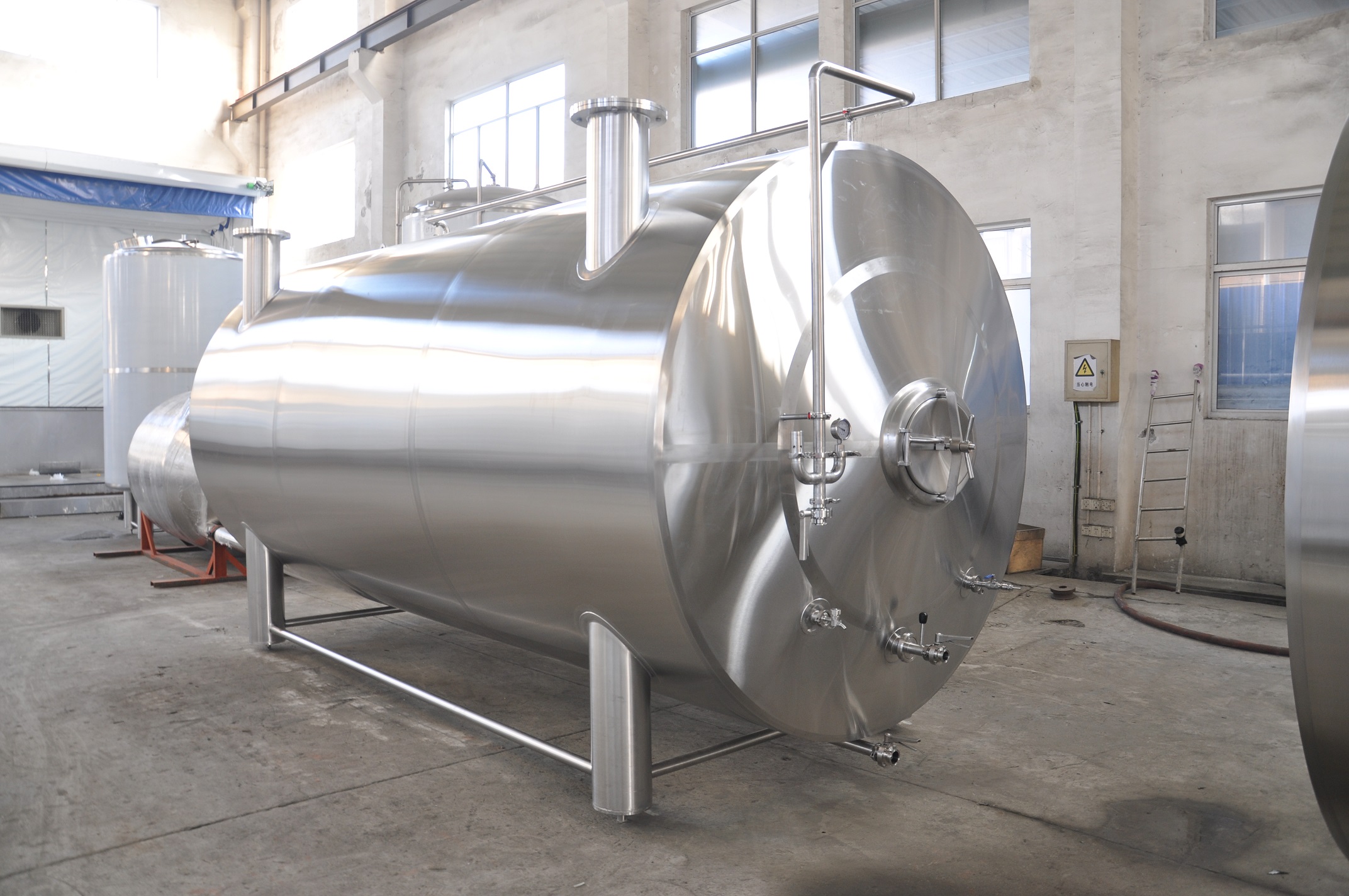

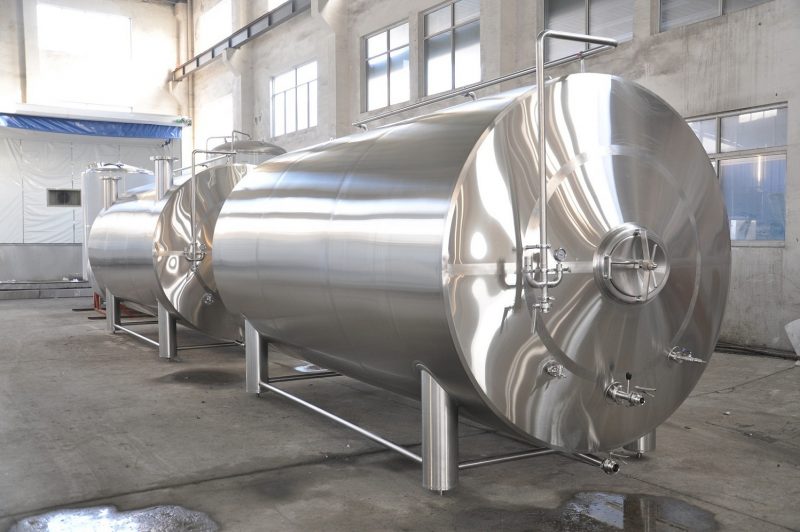

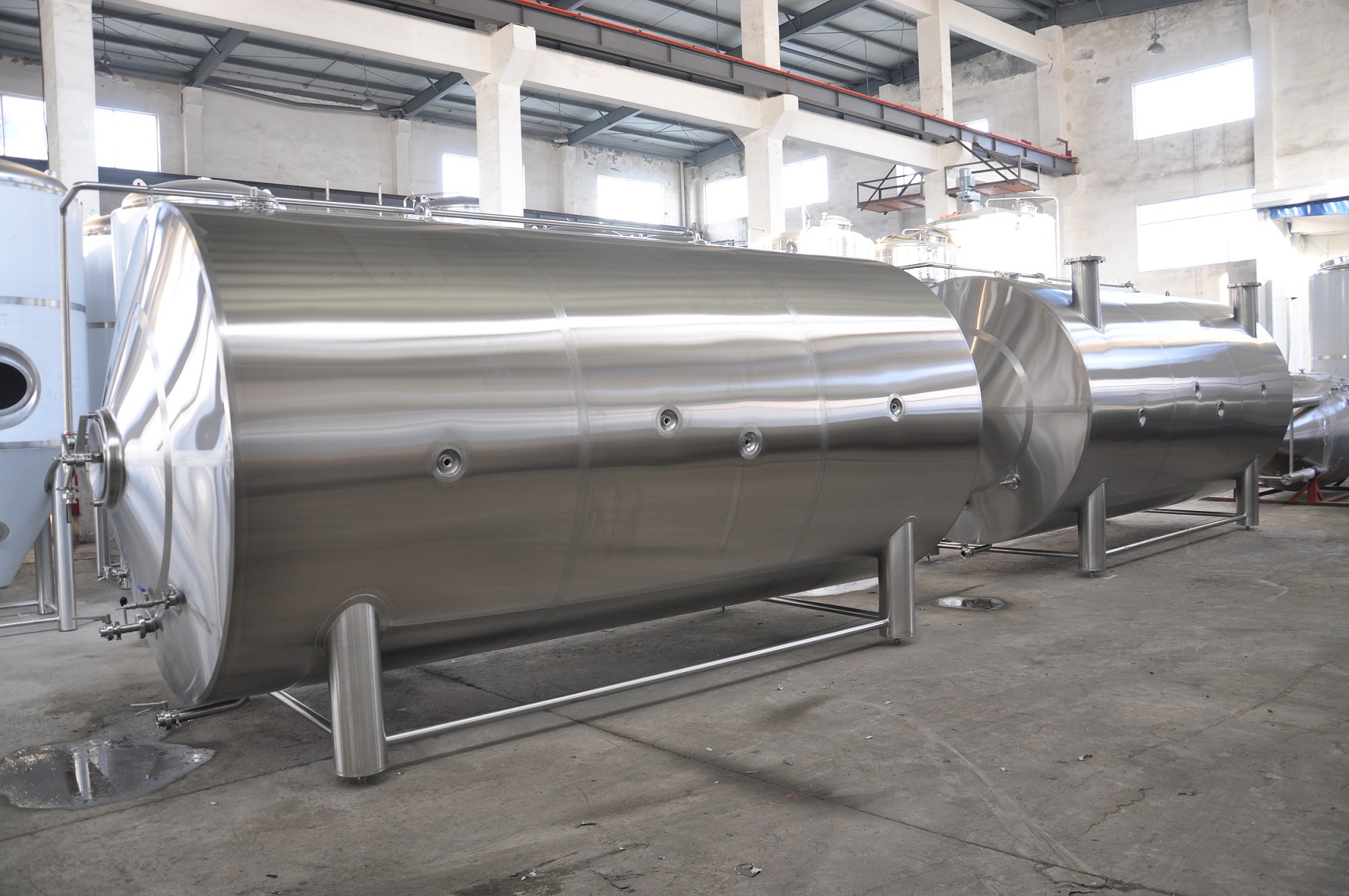

100bbl Horizontal Stackable Brite Beer Tank

100bbl Horizontal Stackable Brite Beer Tank

Horizontal stackable brite beer tank is a type of vessel used in the brewing industry for the storage and conditioning of beer. The tank is typically made of stainless steel and is designed to be stackable, which saves space in the brewery.

Advantages

1. Auxiliary systems selection of leading and imported brand.
2. The auxiliary systems are long life, high-performance, high-quality, low-loss.
3. Certified stainless steel(304,316) material for all tanks.
4. Electrical accessories reach UL, cUL, CE, PED, export standards.

5.Stable quality, high performance, strict quality control.
6.All the equipment are adopted 100%TIG welded joints, mirror Polishing.

7.All the beer brewery tank will do water and pressure test when finishing. Pressure test is 2-4bar;

Parameter

                                                                              Specification for Bright Beer Tank

No.

Name

Specification

1

100BBL Stackable Horizontal Lagering Tank

butterfly valves, sample valve, PVRV

Clamps and gaskets, pressure gauge, carb stone

Stainless steel legs with stainless leveling footpads

Interior shell: 304 stainless steel, thickness 4mm

Exterior shell: 304 stainless steel, thickness 2mm

Interior and exterior finish polished to a sanitary finish

Interior finish pickled and passivated

Exterior brushed, #4 finish

Fully welded exterior shell

Dished top and bottom, with an average of 20% head space

Carbonation stone and port

Side or top manway door,

Dimple jacket cooling jackets

Polyurethane insulation

Level gauge connections

CIP arm and spray ball

Sanitary tri-clamp connections

stackable horizontal lagering tank
