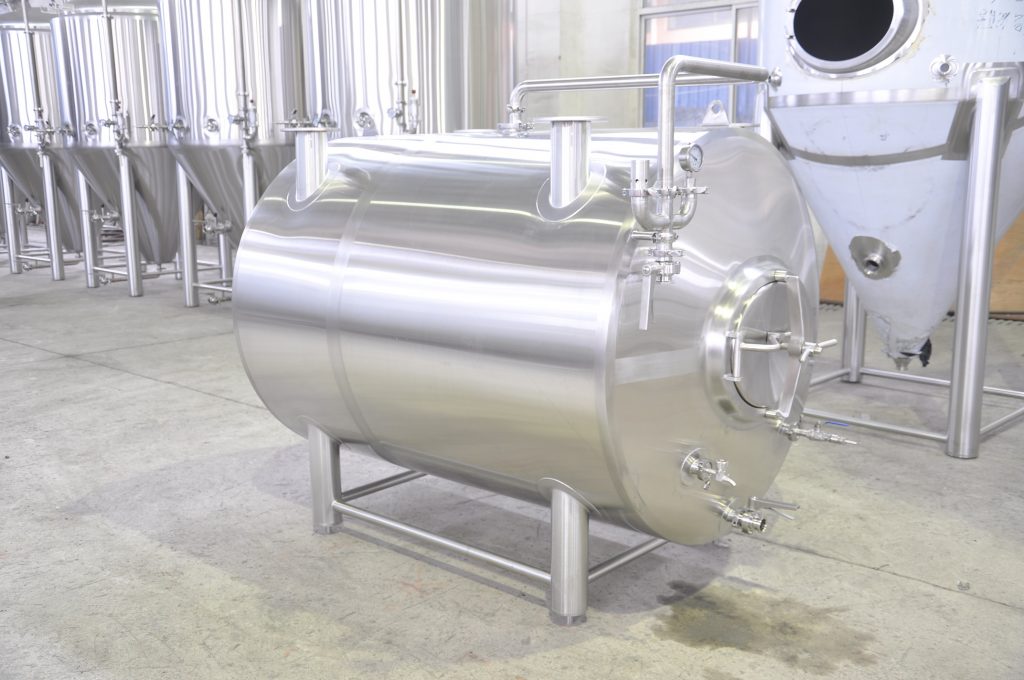

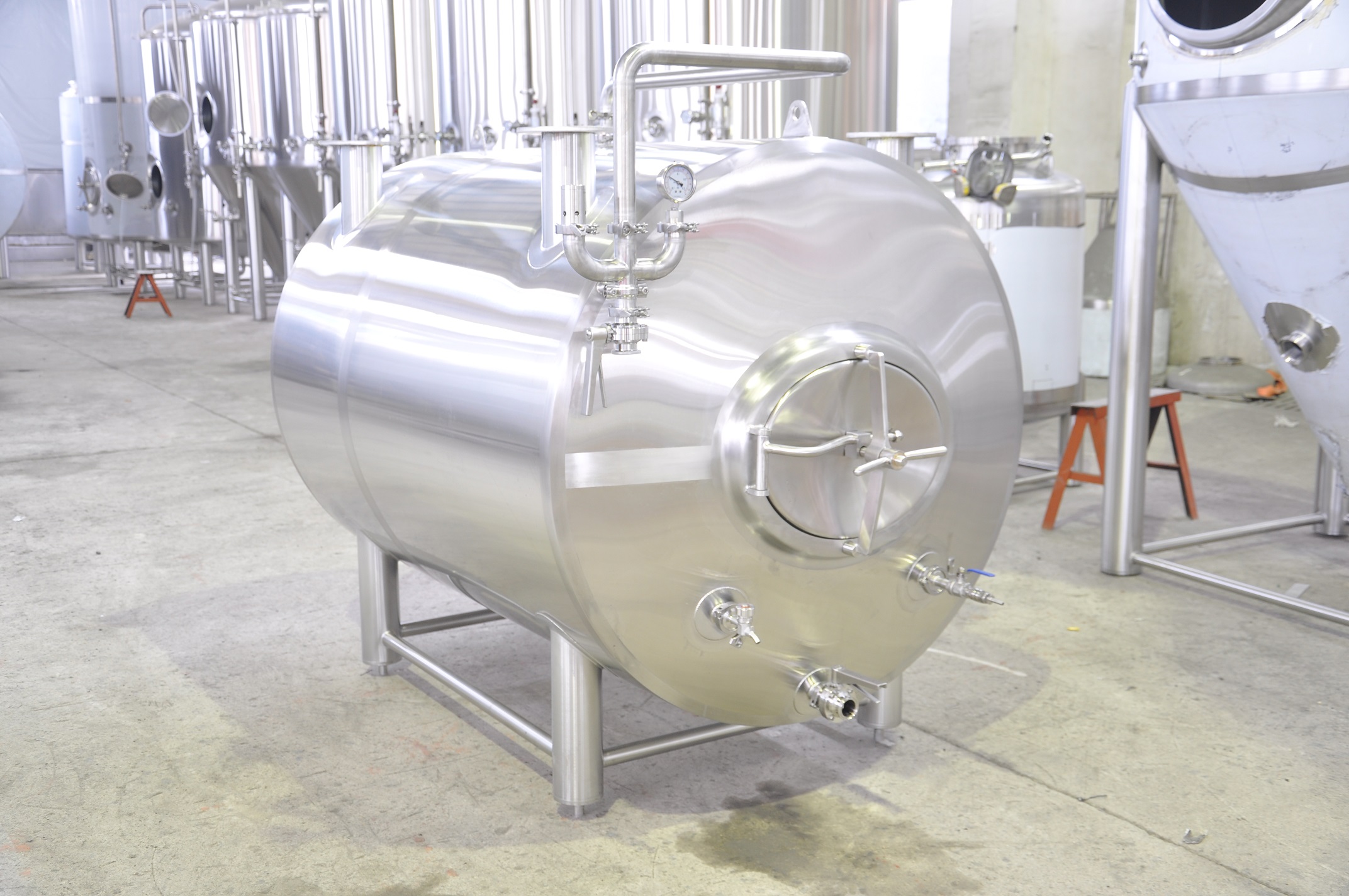

7bbl Horizontal Beer Lagering Tank

7bbl Horizontal Beer Lagering Tank

Horizontal beer lagering tank is a type of storage vessel used in the beer brewing process. It is typically made of stainless steel and designed to hold beer during the lagering phase of the brewing process.


1) All the tanks  use argon arc welding and inner tank will do pickling and passivation or mirror polishing;
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) All the tanks will do water and pressure test when finishing. Pressure test is 2-4bar;



                                              SPECIFICATIONS FOR COMPLETE SET BEER BREWING EQUIPMENT





Bright beer tank

Inoxpa butterfly valves, Perlick sample valve

Micromatic level gauge, PVRV

Clamps and gaskets, pressure gauge, carb stone

Stainless steel legs with stainless leveling footpads

Interior shell: 304 stainless steel, thickness 3mm

Exterior shell: 304 stainless steel, thickness 2mm

Interior and exterior finish polished to a sanitary finish

Interior finish pickled and passivated

Exterior brushed, #4 finish

Fully welded exterior shell

Dished top and bottom, with an average of 15%-20% head space

Carbonation port

Side or top manway door,

Dimple jacket cooling jackets

Polyurethane insulation

Level gauge connections

CIP arm and spray ball

Sanitary tri-clamp connections
