E-mailAdvantages
 |
 |
- Space Efficiency: By stacking tanks, breweries can significantly increase their storage capacity without expanding their physical footprint.
- Improved Lagering: The horizontal design and effective temperature control enhance the quality of the lagering process.
- Operational Efficiency: Easier to clean, maintain, and monitor compared to some other tank designs.
Parameter
 |
 |
Standard product features:
- Brite Beer Tank w/ 20% head space.
- Design pressure 30-45psi or 2-3bar.
- Interior shell: SUS304, thickness 3mm.
- Exterior shell: SUS304, thickness 2mm.
- Interior and exterior finish bright polish to 2B, hygienic surface.
- Horizontal orientation.

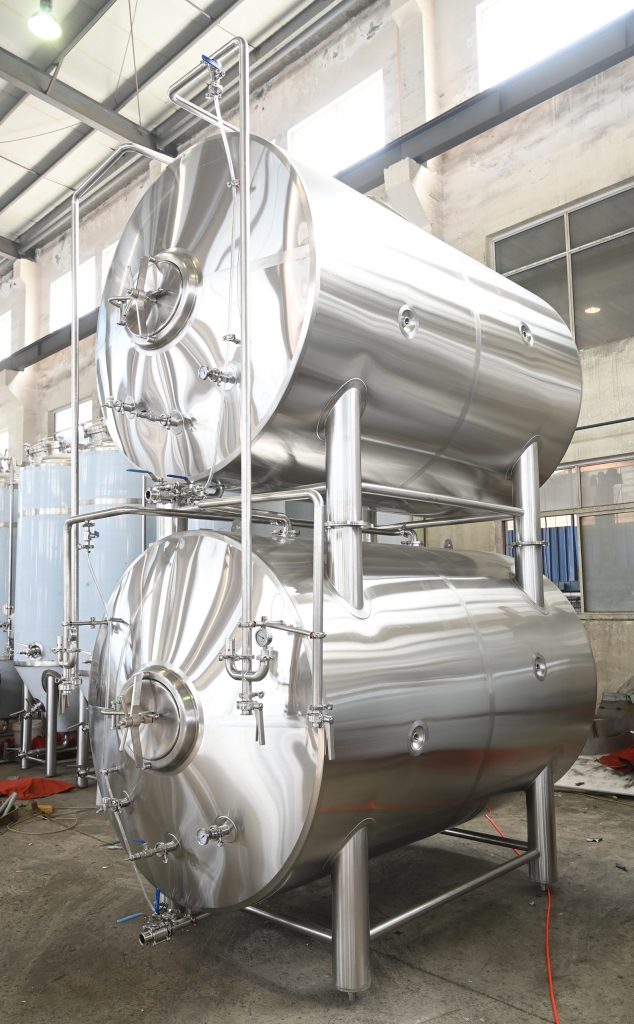

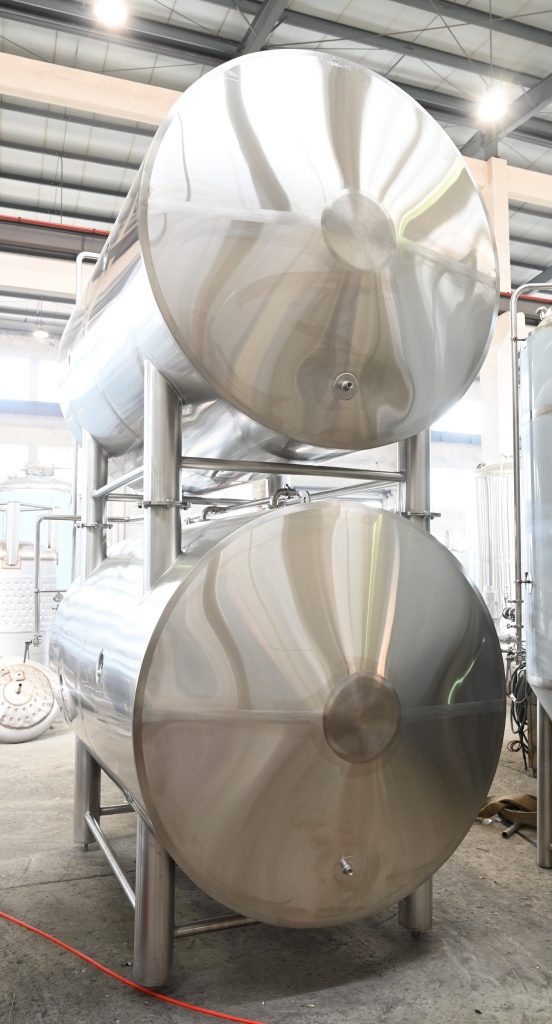

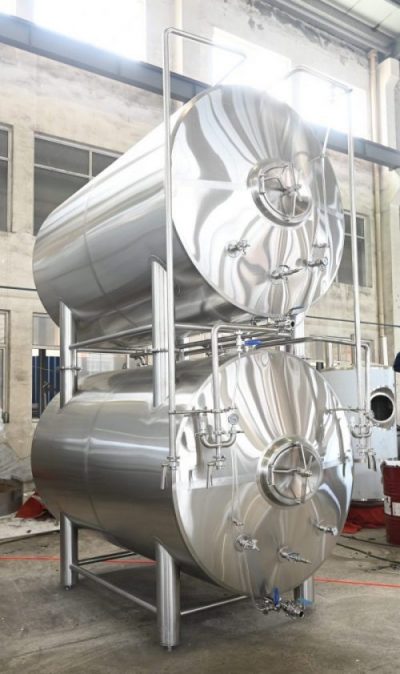

- Stackable Tanks
- Dual ports for racking and discharge/CIP with butterfly valve and fittings.
- Top man way door.

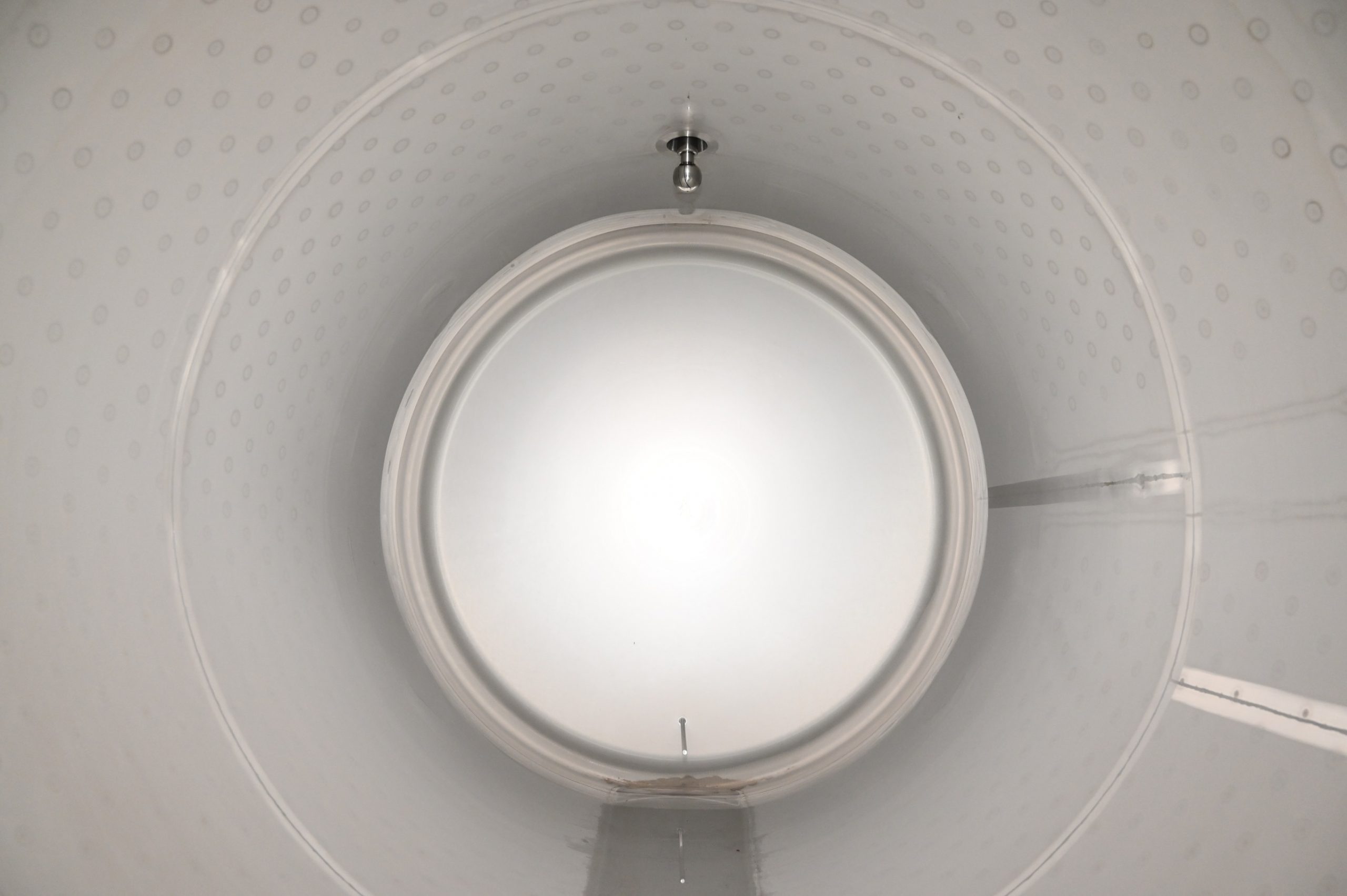

- Dimple glycol cooling jackets with glycol inlets and outlets.
- Polyurethane foam insulation, thickness 80mm/>3” on side and bottom.
- Fully welded exterior shell.
- 4 legs with levelling foot pads.
- CIP arm and spray ball.
- 2‘’Vacuum relief at 2bar.
- Pressure relief valve at 30-45psi as standard.
- Sanitary pressure gauge.
- Sanitary sample valve.
- 1.5”Carbonation stone .
- Quick connect gas valve.
- Lifting Lugs.
- Thermowell.
- Liquid level tube
