150 gallons Double-still Distillery Equipment

150 gallons Double-still Distillery Equipment

NFE provide personalized distillation equipment to meet the needs of different customers.
This distiller is mainly used for the production of whiskey, brandy, rum, and vodka can also be made after repeated distillation for 2~3 times.
The distiller is designed to meet the needs of start-up distilleries or be used as an advanced test still for established distilleries for whiskey, gin, fruit brandy, rum,wine spirit and there is a possibility to produce vodka with additional vodka column.

Advantages

Heating Method: steam heating or electric heating
Use union or tri-clamp connection, easy to install and clean the distilling equipment after a run.
Distillation column red copper column with 5 plate red copper bubble caps

Still pot: copper inner tank, stainless steel cladding, with explosion proof agitator motor, full glass manway
Copper Whisky helmet
Copper columns: copper made with 5 plates
Stainless steel 304 condenser and pipes
Support base, water tank and product tank are made as support base
Application: it can make sure you get function of distilling whisky, brandy, gin and vodka etc.

Parameter

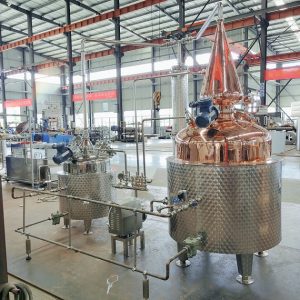

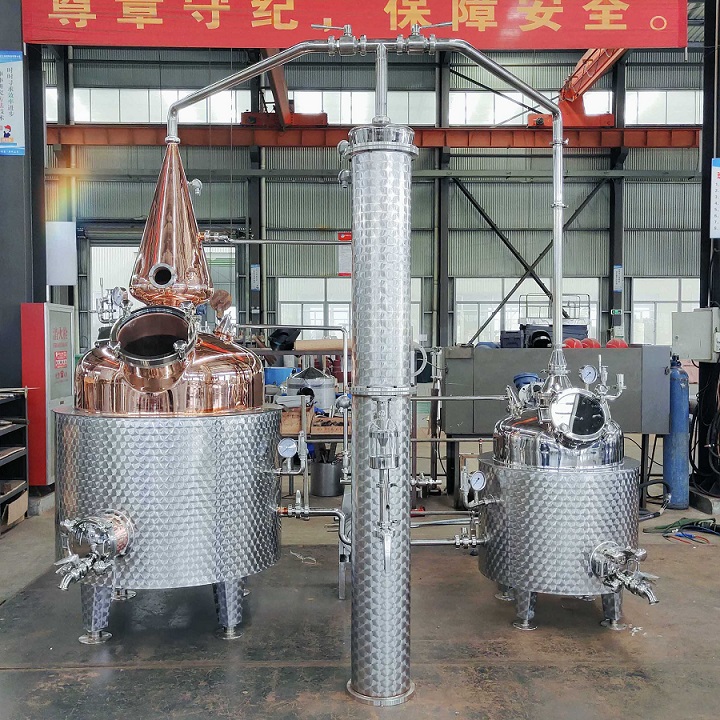

The 150gallon distillery system includes a 150gallon still port and a 50gallon pot, whiskey head, condensor and Parrot out month, also includes CIP pump, CIP pipe and control panel.

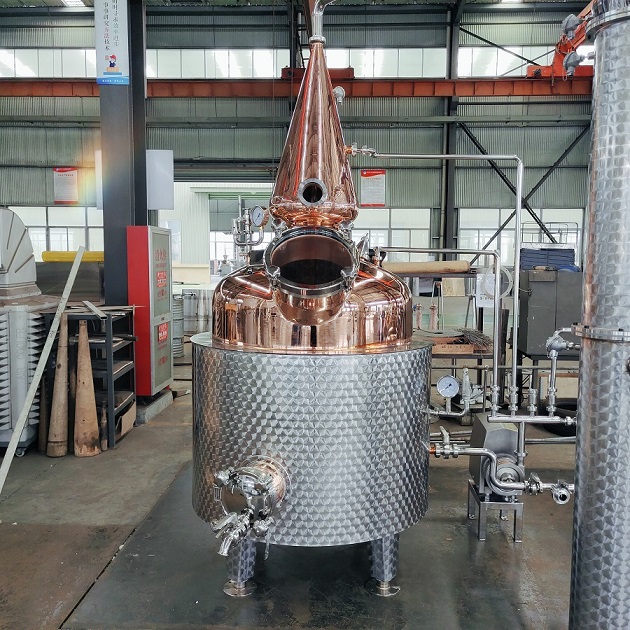

The specification of 150 gallon distillation pot:

1. Material: copper and stainless steel 304,

2.Effective volume: 150 gallon (568L); total volume: 680L

3. Inner wall thickness:5mm;cladding thickness:2mm; jacket wall thickness: 3mm

4. steam heating jacket, 1” NPT steam inlet and condensate outlet, vent port with pressure gauge and ball valve

5. With a globe valve and a solenoid valve at steam inlet; with a steam trap at the outlet

6. copper top, whole copper inner tank, stainless steel cladding

7. Full sight glass manway, lighting,

8.with copper whiskey head

9. 1.5” TC drain outlet

10. Tank top with PRV and pressure gauge.

11. With agitator, 0.37KW motor

12. φ200 check hole

13. PT100 temperature probe

14. 4 stainless steel legs.



Spirit type
Capacity
Components
Whisky distiller
50-5000L
Still pot, swan neck, condenser, CIP, pipe system
Vodka distiller
50-5000L
Still pot, onion head, column, dephlegmator, condenser, CIP, pipe system
Brandy distiller
50-5000L
Still pot, onion head, column, dephlegmator, condenser, CIP, pipe system
Rum distiller
50-5000L
Still pot, column, condenser, CIP, pipe system
Gin distiller
50-5000L
Still pot, column, gin basket, condenser, CIP, pipe system
Multi-spirits distiller
50-5000L
Still pot, onion head, column, gin basket, dephlegmator, condenser, CIP, pipe system

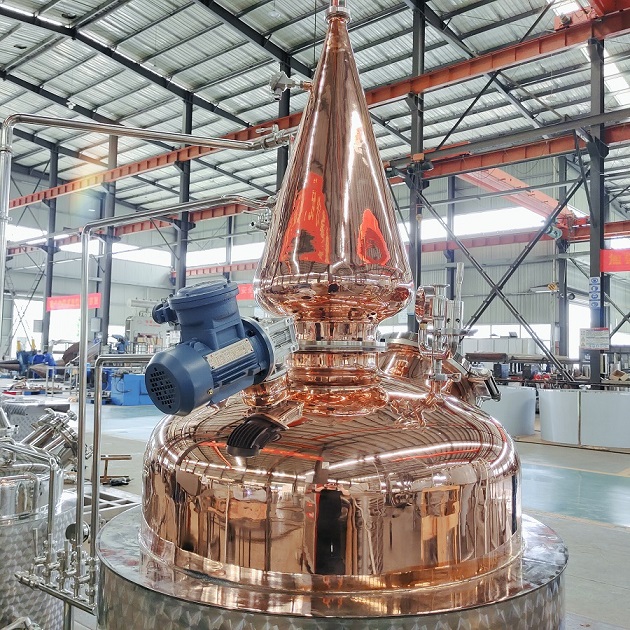

Distiller pot: Inner full copper pot, outer steam jacket with insulation layer, outer layer with fish scale polish, full glass manhole to see, top with agitator stirring.Column plates: full copper bubble plates, side with pass valve to operate, CIP ball insert to each plate to clean, back with cip pipe and valve to operate.

Bubble caps :It consists of bubble caps, down comers, bubble plate, red copper screw and bubble tee (with stainless steel 304 and red copper options)
Bottom collect tanks: water tank to collect condenser water to cycle used with CIP clean, alcohol tanks direct to collect from parrot, bottom connect one water pump.

Control panel: The material of control panel is stainless steel 304;
Parrot spout with high sanitary glass cover, top is copper lid, direct to open, bottom with valve.
