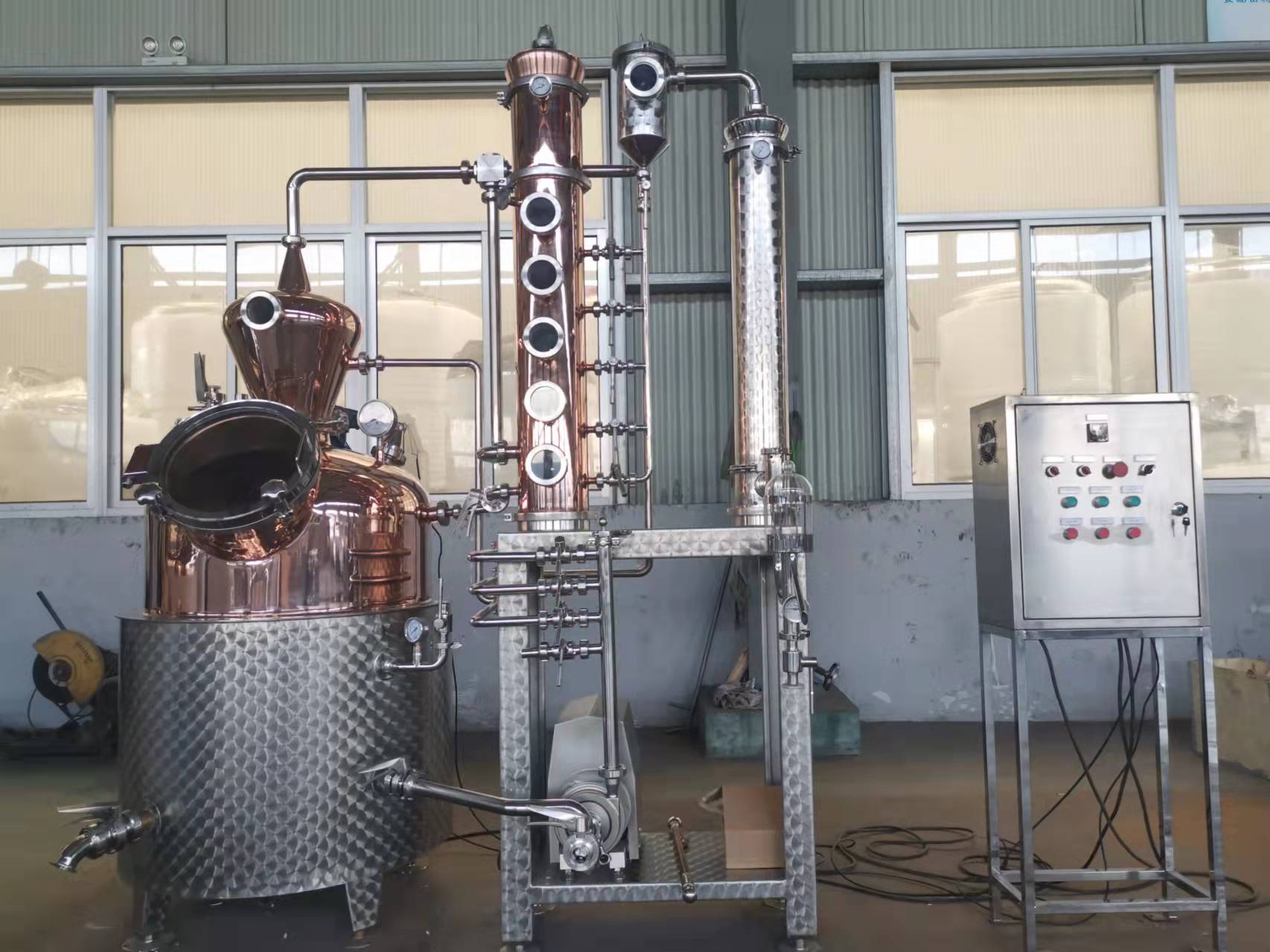

3BBL Distiller System
NFE provide personalized distillation equipment to meet the needs of different customers.
This distiller is mainly used for the production of whiskey, brandy, rum, and vodka can also be made after repeated distillation for 2~3 times.
The distiller is designed to meet the needs of start-up distilleries or be used as an advanced test still for established distilleries for whiskey, gin, fruit brandy, rum,wine spirit and there is a possibility to produce vodka with additional vodka column.
Contact
E-mailAdvantages
Heating Method: steam heating or electric heating
Use union or tri-clamp connection, easy to install and clean the distilling equipment after a run.

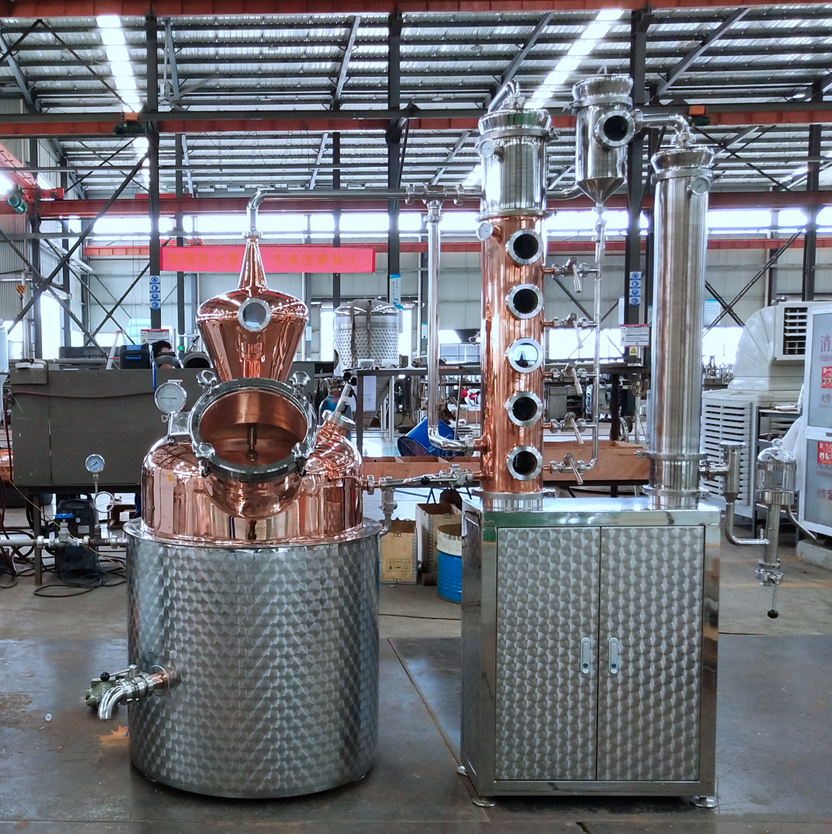

Distillation column red copper column with 5 plate red copper bubble caps
Still pot: copper inner tank, stainless steel cladding, with explosion proof agitator motor, full glass manway
Copper Whisky helmet
Copper columns: copper made with 5 plates
Stainless steel 304 condenser and pipes
Support base, water tank and product tank are made as support base
Application: it can make sure you get function of distilling whisky, brandy, gin and vodka etc.
Parameter
|
Spirit type
|
Capacity
|
Components
|
|
Whisky distiller
|
50-5000L
|
Still pot, swan neck, condenser, CIP, pipe system
|
|
Vodka distiller
|
50-5000L
|
Still pot, onion head, column, dephlegmator, condenser, CIP, pipe system
|
|
Brandy distiller
|
50-5000L
|
Still pot, onion head, column, dephlegmator, condenser, CIP, pipe system
|
|
Rum distiller
|
50-5000L
|
Still pot, column, condenser, CIP, pipe system
|
|
Gin distiller
|
50-5000L
|
Still pot, column, gin basket, condenser, CIP, pipe system
|
|
Multi-spirits distiller
|
50-5000L
|
Still pot, onion head, column, gin basket, dephlegmator, condenser, CIP, pipe system
|
Distiller pot: Inner full copper pot, outer steam jacket with insulation layer, outer layer with fish scale polish, full glass manhole to see, top with agitator stirring.Column plates: full copper bubble plates, side with pass valve to operate, CIP ball insert to each plate to clean, back with cip pipe and valve to operate.
Bubble caps :It consists of bubble caps, down comers, bubble plate, red copper screw and bubble tee (with stainless steel 304 and red copper options)
Bottom collect tanks: water tank to collect condenser water to cycle used with CIP clean, alcohol tanks direct to collect from parrot, bottom connect one water pump.
Control panel: The material of control panel is stainless steel 304.
Parrot spout with high sanitary glass cover, top is copper lid, direct to open, bottom with valve.
