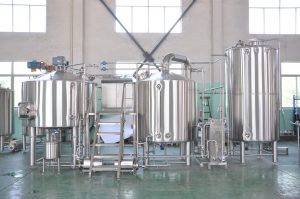

2000L Steam Microbrewery Equipment

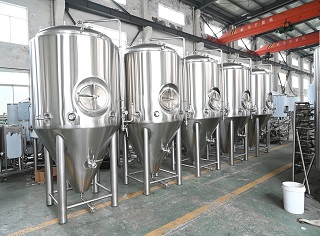

NFE provide 2000L 2 or 3 or 4 vessels microbrewery equipment with beer fermenters & Bright beer tanks and from milling the malt to filling your kegs.
At NFE, we design and build microbrewery equipment with your specific requirements in mind. Our goal is to help you produce great quality beer the way your want to using equipment you’re going to enjoy using.
Contact
E-mailAdvantages
 |
 |
1)All the tanks insulation use argon arc welding and inner tank will do pickling and passivation or mirror polishing;
2)Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts;
3) All the steam heating beer brewery tank will do water and pressure test when finishing. Pressure test is 2-4bar;
4) Closed grant system improves runoff performance;
5) Variable speed drives on pumps, motors and agitators;
6) Stainless steel work platform for integrity, no rusting and long life;
7) We produce our commercial brewing equipment to the absolute highest standard – because the quality of equipment can really make a huge difference to your product – and overall success of your brewery.
Parameter
Mash/lauter tun:
- Mash lauter tun w/ 30% head space.

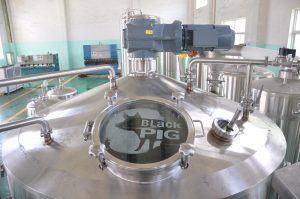

- Top glass manway with logo options.

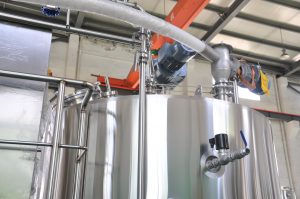

- Hot/cold liquor blending pre grist hydrator.

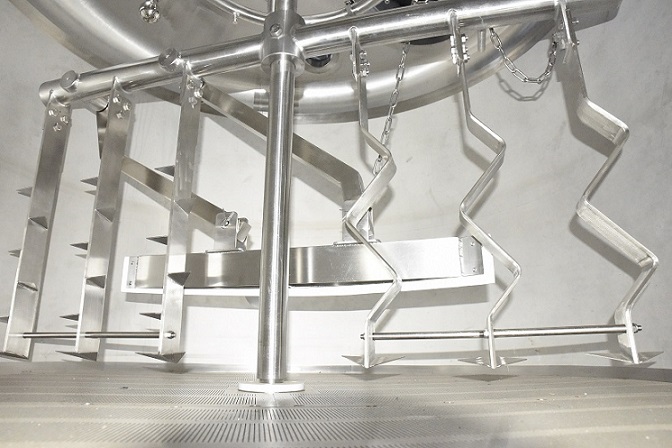

- Motorized VFD reversible rakes & grain plow to aid with grain out.
- Side steam jacket with push button heating control.
- Internal LED lighting.
- Sparge ring and vorlauf assembly.
- Vorlauf sight glass.
- False bottom – wedge wire. (3mm)
- Multiple wort drain ports.
- Thermo-well and PT100 Thermocouple.
- Multiple CIP under flush ports.
- 20L SUS304 closed wort grant option.
- CIP spray balls – 360⁰ coverage.
- SUS304 Lifting Lugs.
- 4 SUS304 legs with levelling foot pads
Kettle/whirlpool tank:
- Kettle/whirlpool combined vessel w/ 40% head space.
- Top glass manway with logo options.
- Bottom, side and top steam jackets with push button controls.
- Internal LED lighting.
- Tangential wort inlet.
- 5″ side wort drain, behind trub baffle.
- 2″ drain outlet.
- CIP spray balls – 360⁰ coverage.
- Steam Condenser Stack Kettle steam condenser.
- Dual water condensing/suction fan.
- SUS304 Lifting Lugs.
- 4 SUS304 legs with levelling foot pads.
Pump:
- VFD sanitary centrifugal pump.
- Made of 100% non-reactive, sanitary-finished, food-grade SUS304.
- Specific sanitary centrifugal pump designs for brewhouses, HLT, CLT, keg washers, hop cannons and lenticular filtration units.
- Standard flow rate of 10hL p/hr – 200hL p/hr.
- Standard lift of 18M – 24M.
Platform:
- SUS304 working platform, with stairs and safety railing.
2-Stage Heat Exchanger
- Cold water and glycol stages for expedited knock out.
- High efficiency knock down.
- Easy cleaning and disassembly.
- Back flush capabilities.
- Set of spare plate gaskets included.
0² Oxygenation Assembly
- Sanitary sinter stone.
- SUS304 Ball valve & Gas quick connect.
- Allows to connect to 0² for wort oxygenation.
Valves and Piping
- SUS304 Sanitary fittings/valves/piping.
Brewhouse Electrical Control System
- Brewhouse, HLT, CLT & GT central control system.
- Controls for all VDF pumps.
- Temp gauges and switches to monitor steam heating.
