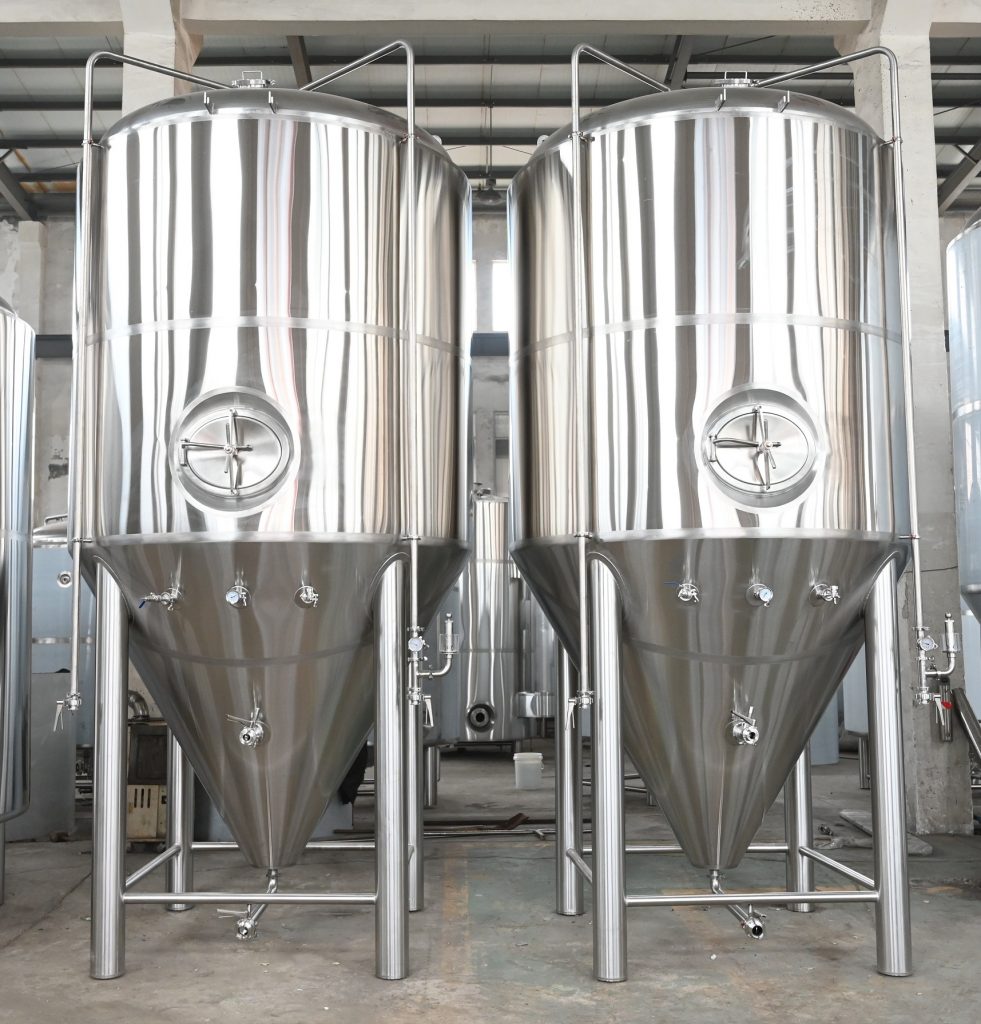

60bbl jacketed beer unitanks

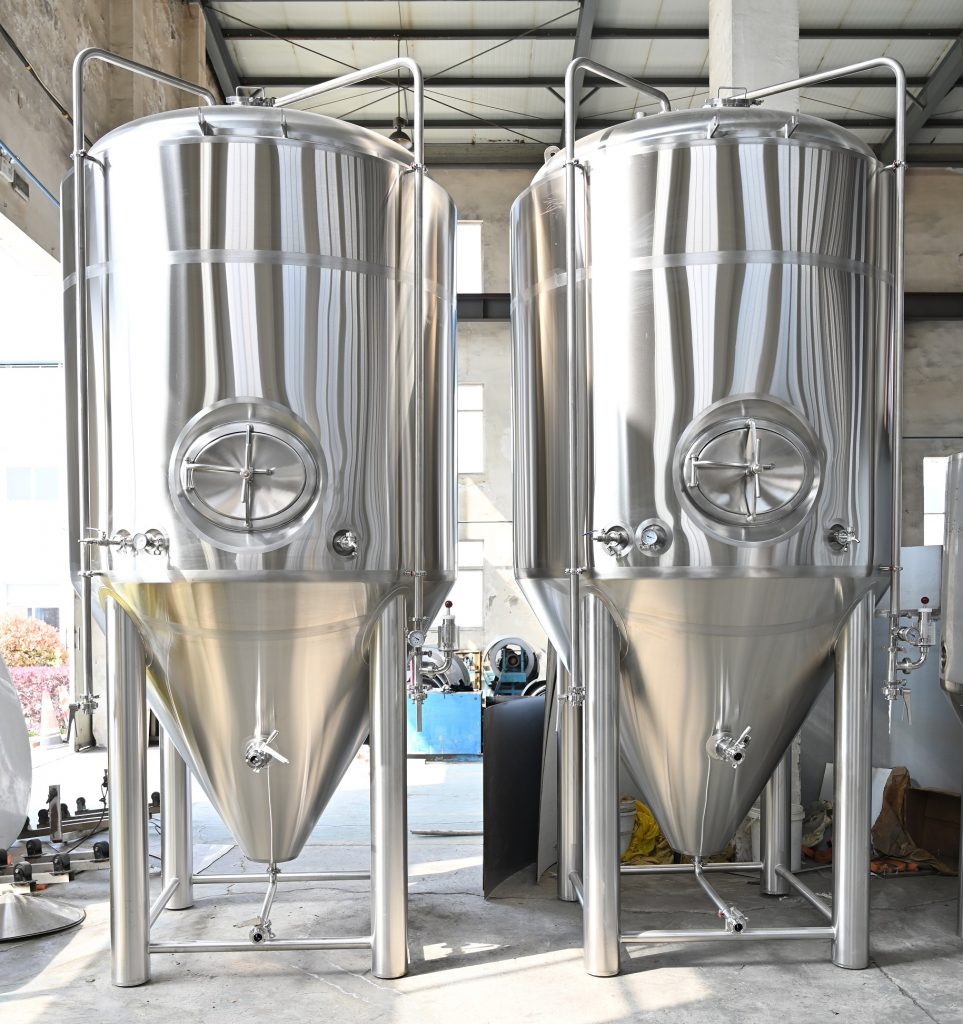

30bbl jacketed beer fermentors

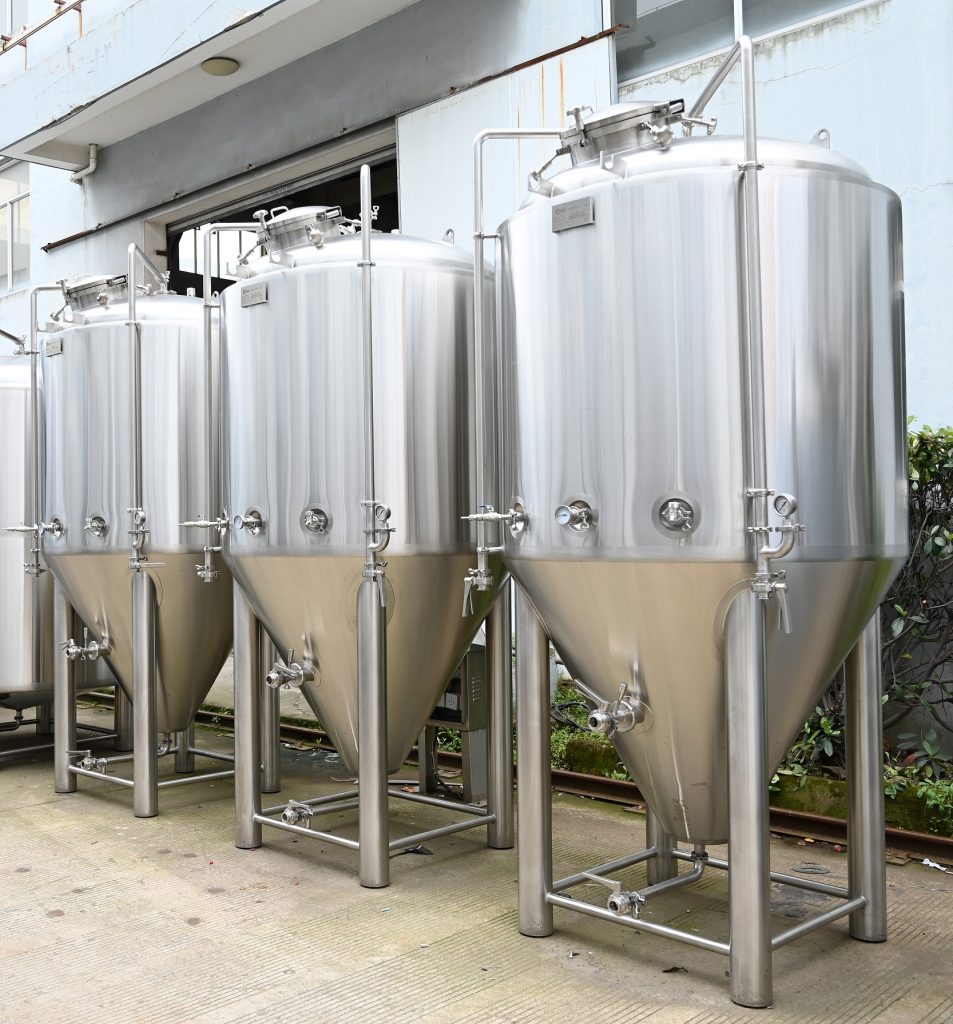

15bbl jacketed beer fermenters

The specification for jacketed beer fermenters:

• 25% top space to avoid beer foam out;
  • Accommodate to brew 1/2 batches
  • 2” pressure vacuum relief valve
  • Spunding valve
  • 1.5” sample valve
  • Pressure gauge
  • CIP – rotary spray ball
  • 1.5’’CO2 blow off tube
  • Rotating racking assembly
  • 60 degree cone
  • Multiple glycol zones
  • Fully welded cladding
  • Adjustable tank leveling pads
  • Carb Stone 1.5” TC assembly
  • RTD Probe
  • 4″ Hops port for 15bbl and 30bbl beer fermenters and 6’’ hops port for 60bbl beer fermenters
  • 1.5″ Butterfly valves
  • Tension braces on legs.

The specification for jacketed brite tanks:

• 20% top space to avoid beer foam out;
  • Accommodate to brew 1/2 batches
  • 2” pressure vacuum relief valve
  • 1.5” sample valve
  • Pressure gauge
  • CIP – rotary spray ball
  • 1.5’’CO2 blow off tube
  • Multiple glycol zones
  • Fully welded cladding
  • Adjustable tank leveling pads
  • Carb Stone 1.5” TC assembly
  • RTD Probe
  • 1.5” butterfly valves
  • Tension braces on legs.

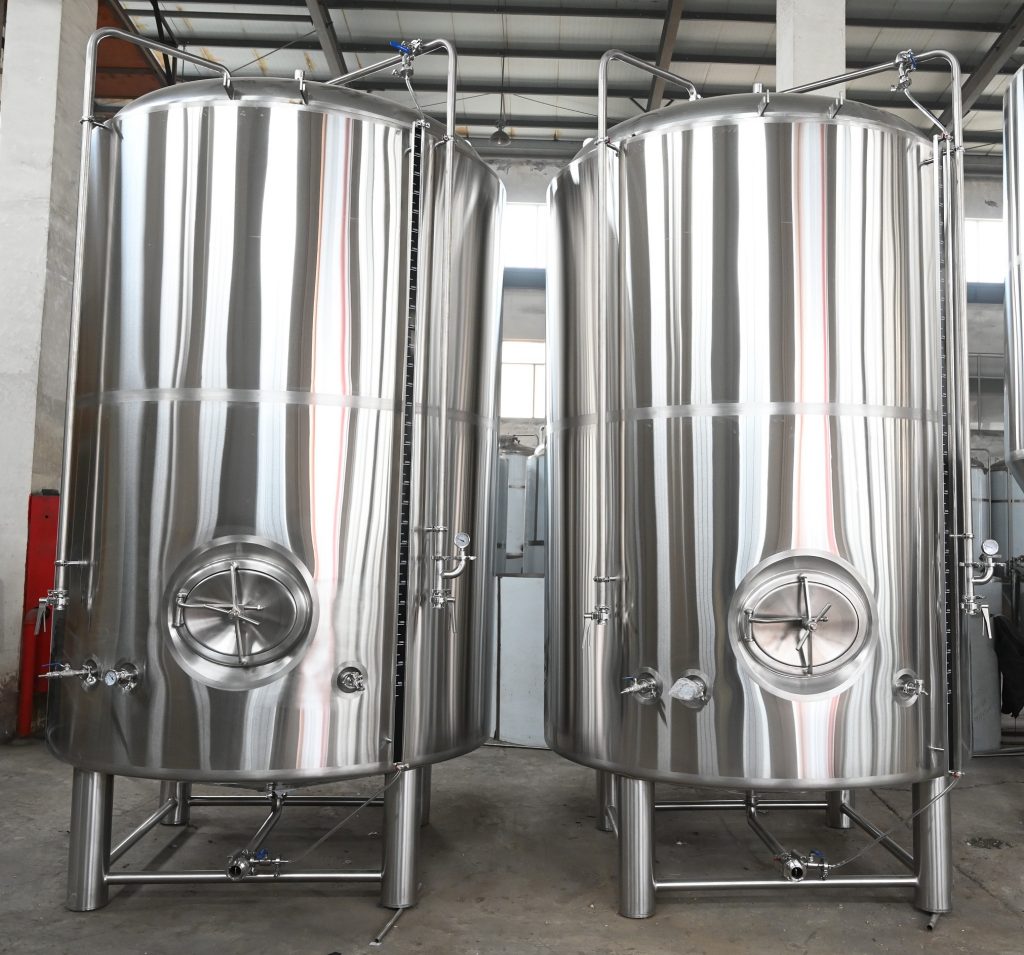

60bbl jacketed brite tanks

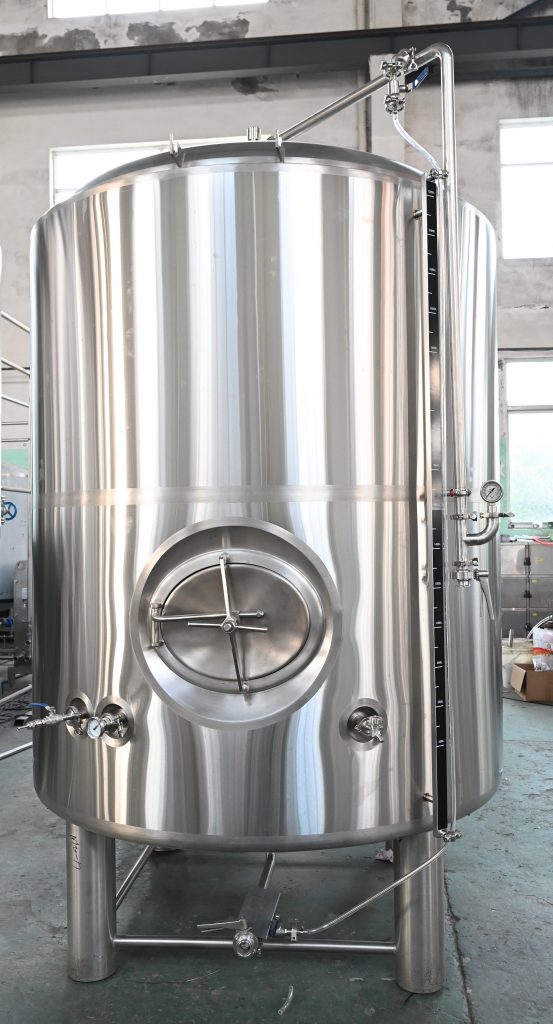

30bbl bright beer tanks

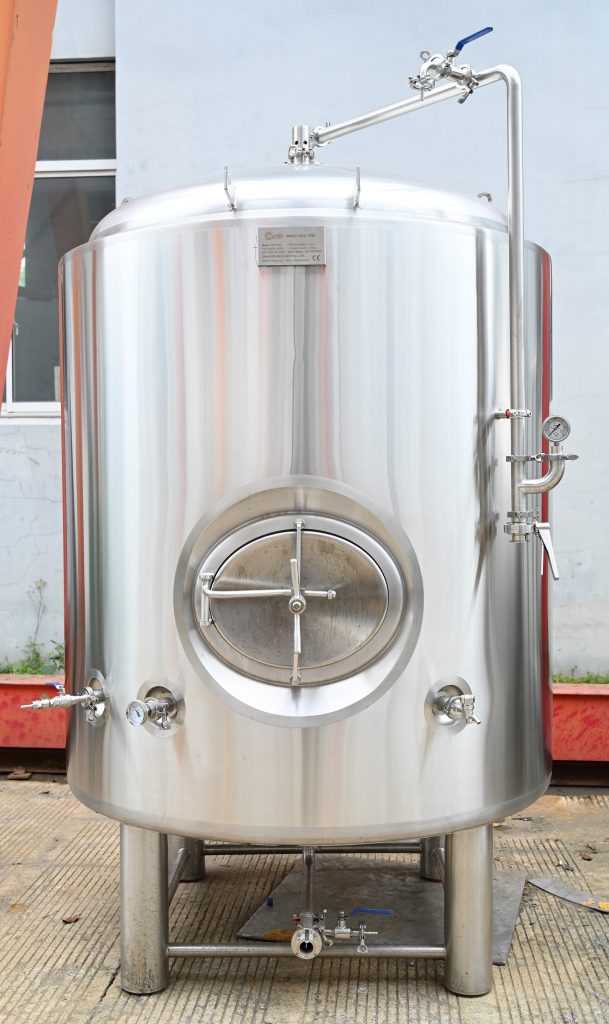

15BBL BBT

Welcome you to get in touch for a quote, We would love to work with you!
