15BBL microbrewery equipment is suitable for small to medium-sized craft breweries, producing up to approximately 50,000-100,000 liters of beer per month. It requires a floor space of about 100-120 square meters, If you plan a medium to large brew pub, microbrewery, our 15BBL brewing system is a good option for you.
Our complete turnkey microbrewery brewing system comes with detailed tank drawings, pipeline flow diagram and brewery layout. We talk specifications on milling malt, heating, refrigeration, pumps, valves, pipeline and controls, as well as brewing vessels and tanks.
Our highly experienced enginnering and installation team will be there for you every step of the process. From designing brewing equipment layouts, individual tank drawings and manufacturing, to installation, commissioning and on-site training.
1. Complete, new, and high quality configuration.
2. Auxiliary systems selection of leading and imported brand.
3. The auxiliary systems are long life, high-performance, high-quality, low-loss.
4. Certified stainless steel(304,316) material for all tanks.
5. Electrical accessories reach UL, cUL, CE, PED, export standards.
6. Supporting auxiliary system voltage and frequency match your standard exactly.
7. New production technics.
8. Stable quality, high performance, strict quality control.
9. All the equipment are adopted 100%TIG welded joints, mirror Polishing.
10. CAD layouts, installation assistance, assembly, training.
No. |
Name |
Components |
Specification |
1 |
Grain Milling Unit |

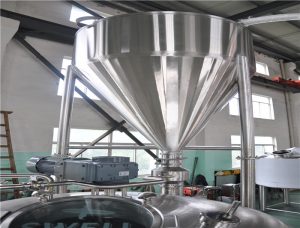

Rolling Miller |
Stainless steel, Double roller, rollers distance adjustable |
Grain auger |
Conveys grist from malt mill to grist case; Inside stainless screw, outside PPR protection tube; Associated motor with frequency conversion |
||
SS grist hopper |
Stainless steel304 |
||
2 |

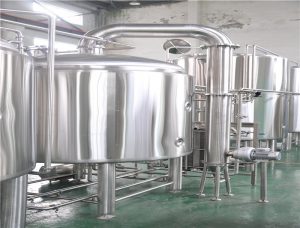

Brewhouse unit |

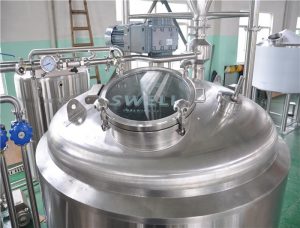

Mash/Lauter tun |

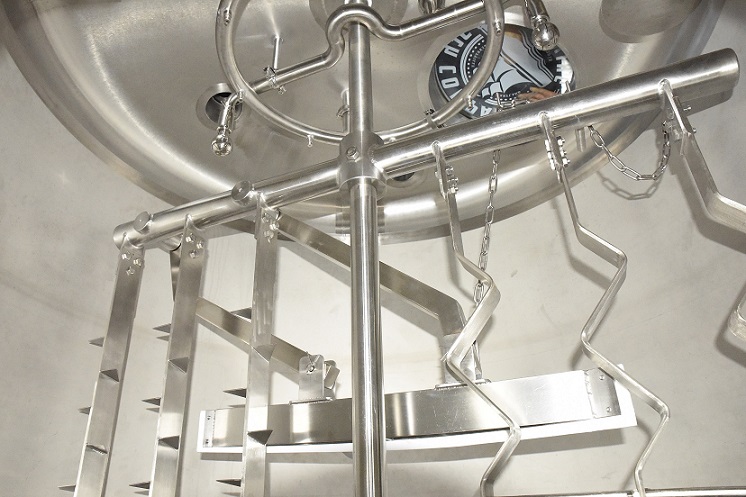

Grain rake with VFD With side grain out door Tank light assemblies Mash hydration assembly Rotary CIP spray balls Level sight tube |
Kettle/Whirlpool Tun |
Steam Jacket /direct gas fired heating/electric heating Tank light assemblies Rotary CIP spray balls Tangential whirlpool entry Level sight tube |
||

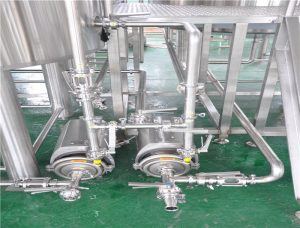

Wort pump |
Sanitary wort pumps with variable speed control |
||
Working platform |
OSHA compliant platforms with safety railings & stairs, Cellar package with brewers hoses, valves and fittings |
||
Hot liquor tank |
Steam Jacket heating/direct gas fired heating/electric heating Sight gauge for water level With SS HLT pump with variable speed control |
||
Heat exchanger |
SUS304/316 plate, with wort aeration system |
||
3 |
Fermentation unit |

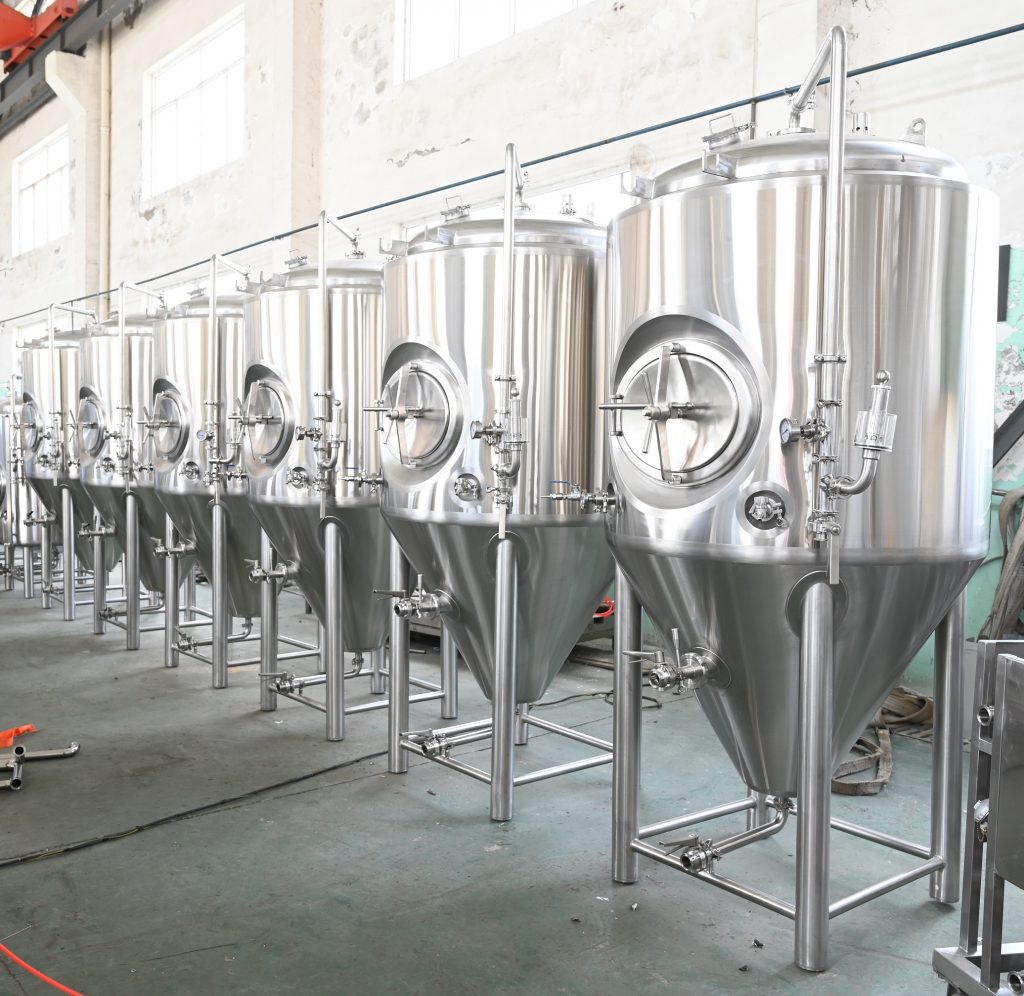

Fermenter |
Interior and exterior finish polished to a sanitary finish Interior finish pickled and passivated Exterior brushed, #4 finish Fully welded exterior shell 60 degree cone bottom, with an average of 25% head space Rotating racking port Glycol cooling jacket on cone and bottom Inoxpa butterfly valves, sample valve, 2” pressure vacuum relief valve RTD Probe Tension braces on legs Sanitary tri-clamp connections |
4 |
Bright beer tank |
Bright beer tank |
Inoxpa butterfly valves, Perlick sample valve Micromatic level gauge, PVRV Clamps and gaskets, pressure gauge, carb stone Stainless steel legs with stainless leveling footpads Interior shell: 304 stainless steel, thickness 3mm Exterior shell: 304 stainless steel, thickness 2mm Interior and exterior finish polished to a sanitary finish Interior finish pickled and passivated Exterior brushed, #4 finish Fully welded exterior shell Dished top and bottom, with an average of 15%-20% head space Carbonation port Side or top manway door, Dimple jacket cooling jackets Polyurethane insulation Level gauge connections CIP arm and spray ball Sanitary tri-clamp connections |
5 |
Glycol Chilling Unit |
Glycol Water Tank |
Insulated conical top and sloped bottom Liquid level sight tube for water level Rotating CIP spray ball |
Cold Water Tank |
Cooling jacket on tank with PU insulation Liquid level sight tube for water level Rotating CIP spray ball |
||
Glycol Chiller |
Assembly unit, wind cooling, environmental refrigerant: R404a, compressors and electrical components meet UL/cUL/CE certified |
||
6 |
Control unit |
Brewing and fermentation process Controlling |
Manual button control panel or PLC control with touch screen for special, control panel with RTD & solenoid valves |
7 |
CIP |
Caustic Tank |
electric heating element inside |
Sterilization Tank |
Stainless steel 304 |
||
Transfer&Control |
Portable sanitary CIP/wort pump, SS cart & VFD controller |
