NFE 7bbl And 15BBL Jacketed Brite Tank

NFE 7bbl And 15BBL Jacketed Brite Tank

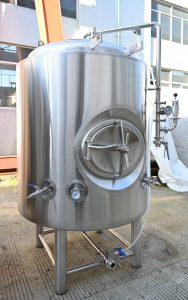

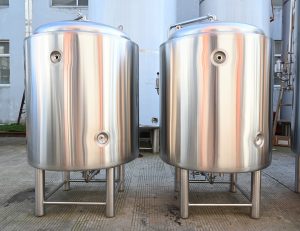

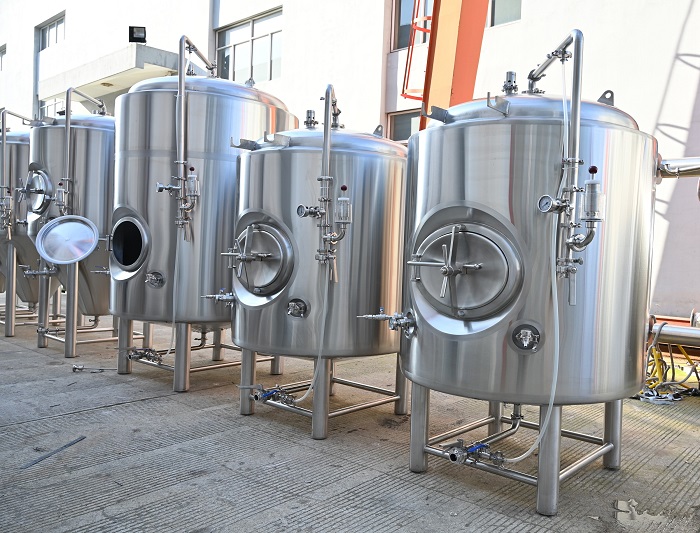

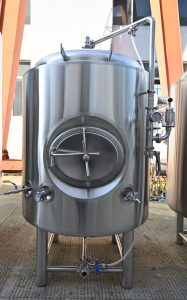

Jacketed brite tank (also known as a bright tank, bright beer tank, etc.) is used for carbonation of beer, as a condition tank, and as a serving tank. Our bright beer tanks are ideal for micro breweries and nano breweries where space may be limited. These brite tanks can be used for storing and serving carbonated beer and eliminate the hassle of cleaning beer kegs.

Advantages

1.Complete, new, and high quality configuration.
2. Auxiliary systems selection of leading and imported brand.
3. The auxiliary systems are long life, high-performance, high-quality, low-loss.
4. Certified stainless steel(304,316) material for all tanks.
5. Electrical accessories reach UL, cUL, CE, PED, export standards.
6. Supporting auxiliary system voltage and frequency match your standard exactly.

7.New production technics.
8. Stable quality, high performance, strict quality control.
9. All the equipment are adopted 100%TIG welded joints, mirror Polishing.

10.CAD layouts, installation assistance, assembly, training

Parameter

  • Brite Beer Tank w/ 20% head space.
  • Design pressure 30-45psi or 2-3bar.
  • Interior shell: SUS304, thickness 3mm.
  • Exterior shell: SUS304, thickness 2mm.
  • Interior and exterior finish bright polish to 2B, hygienic surface.
  • Options of vertical or horizontal orientation.
  • Dual ports for racking and discharge/CIP with butterfly valve and fittings.
  • Side or Top man way door, shadowless.
  • Dimple glycol cooling jackets with glycol inlets and outlets.
  • Polyurethane foam insulation, thickness 80mm/>3” on side and bottom.
  • Fully welded exterior shell.
  • 4 legs with levelling foot pads.
  • CIP arm and spray ball.
  • Vacuum relief at 0.3psi.
  • Pressure relief valve at 30-45psi as standard.
  • Sanitary pressure gauge.
  • Perlick style sample valve.
  • Carbonation/sinter stone with one way check valve.
  • Quick connect gas valve.
  • Lifting Lugs.
  • Thermowell.
