30BBL and 60BBL Fermenters

This nice brewery is located in NB, Canada, founded in 2014. They are committed to producing high-quality, bold, and robust American-style Ales.

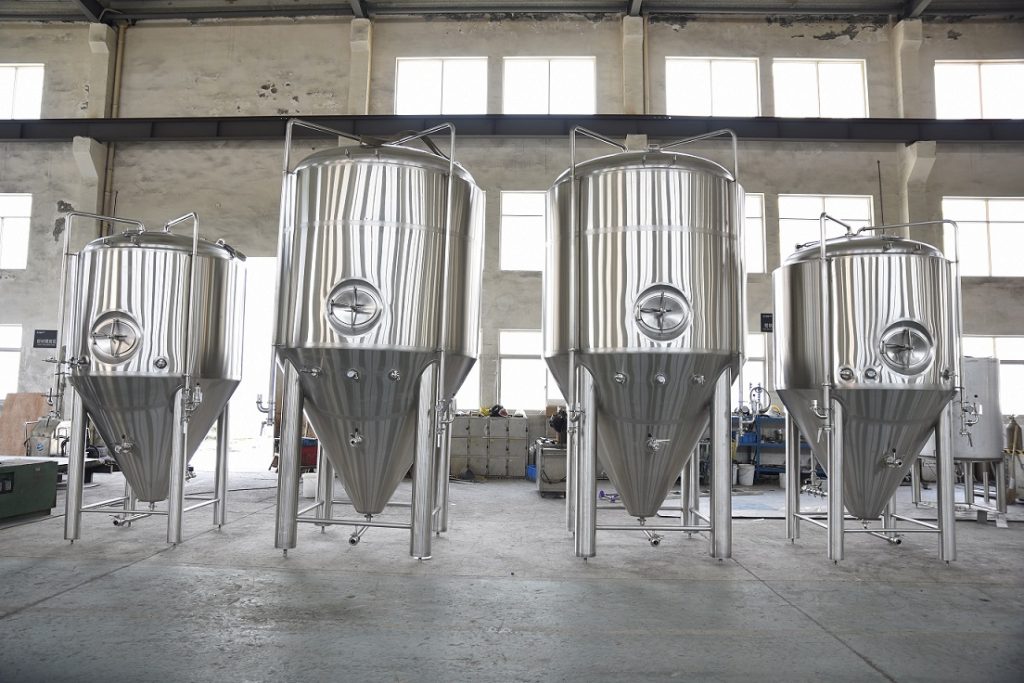

This brewery ordered 60bbl fermenters and 30bbl fermenters from NFE.

Here are the standard specification of NFE 60bbl fermenters.

Sanitary Stainless steel 304
Effective volume: 60BBL; total volume: 75-80BBL; 25% top space to avoid beer foam out;
Dome top head, cone bottom;
Polyurethane insulation, thickness: 100mm; inner body thickness 3mm, cladding thickness 2mm;
Dimple plate cooling jackets, on wall and cone;
Side manway;
With rotary CIP spray balls and arm;
With blow off pipe
Thermometer; PT100 temperature probe;
4” dry hopping port and PRV on top head;
2” PRV: 2 bar;
Working pressure: 2 bar
5”Sample valve
Separate outlets for yeast and clear beer, beer racking arm located in the conical part of the tank
With carbonation stone and 2”tri-clamp port
Pressure gauge;
Butterfly valves on CIP pipe, racking arm and drain port
2 ladder hooks,
4 stainless steel legs with screw assembly to adjust leg height
