Parameter

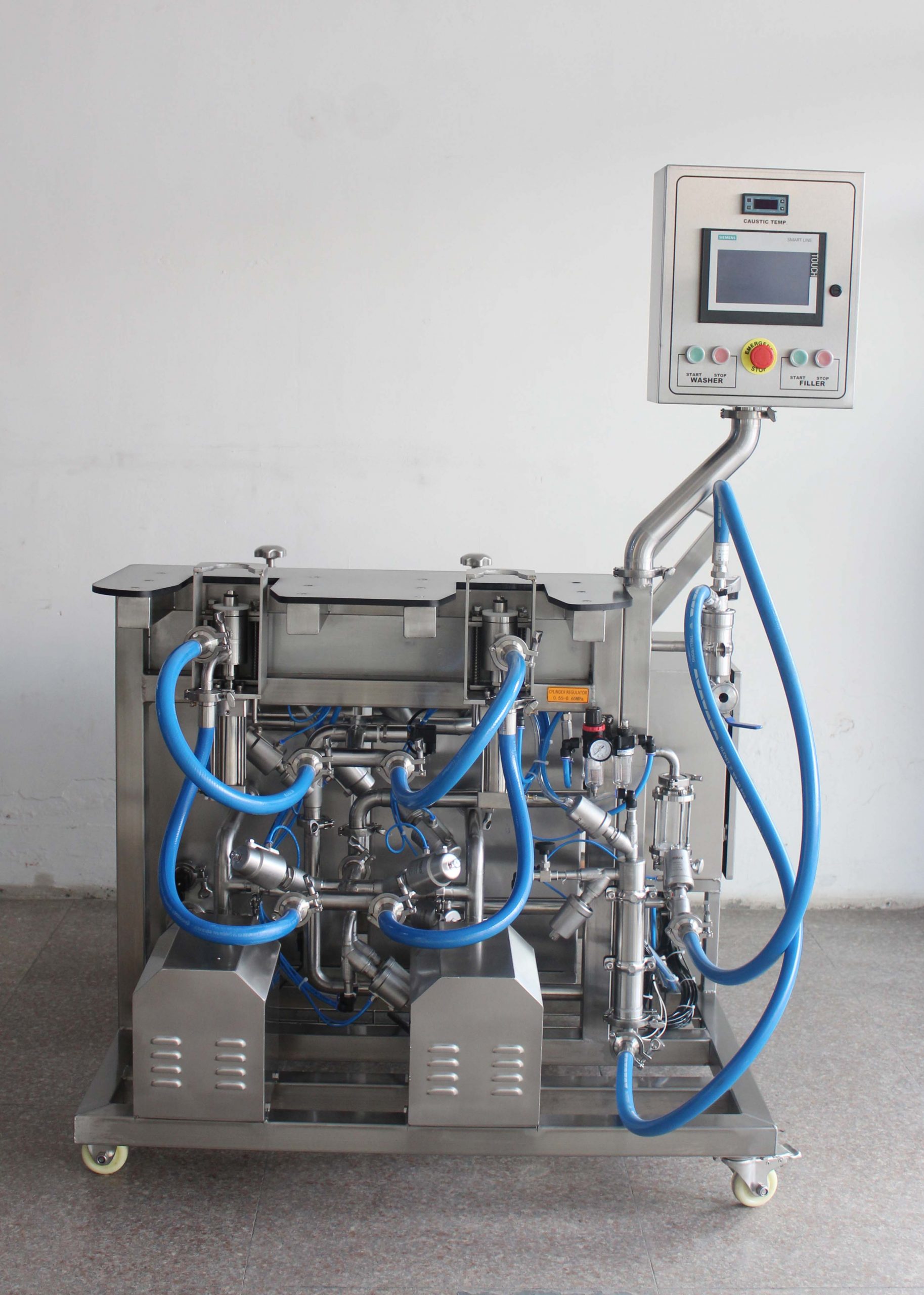

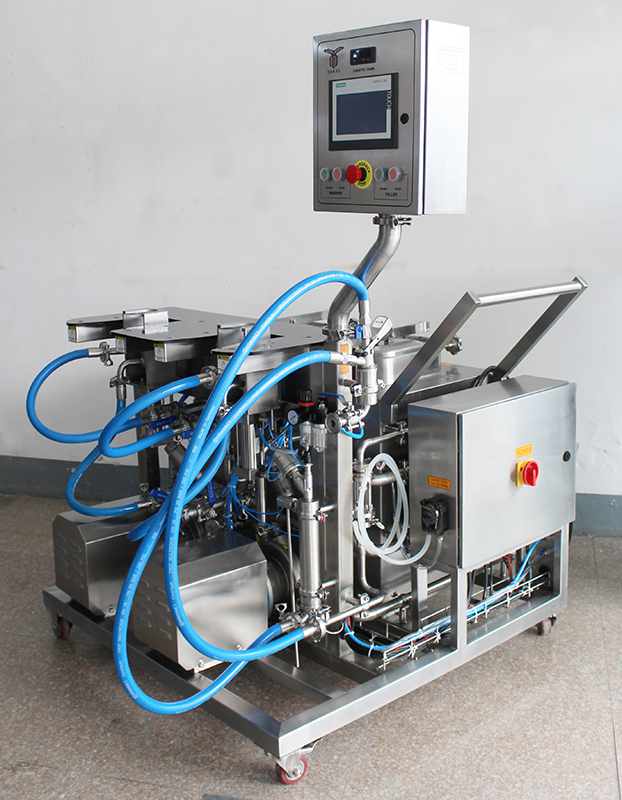

Specification of Keg Washer & Filler 2-1
| 1 | Size:W*L*H | 1.25X1.40X1.59M | |||
| 2 | Net Weight | 223KG | |||
| 3 | with slide or not | No | Yes | ||
| 4 | Packing Size （L*W*H) | 1.55X1.41X1.45M | |||
| 5 | Gross Weight with Package | 348KG | |||
| 6 | Capacity | Washing part: | 40-50pcs/h | Filling part： | 40-50pcs/h |
| 7 | Power | According to user local power | |||
| 8 | Power port | 3P+N+G | |||
| 9 | Heater way | Steam Coiler | Electrical Heater | ||
| 10 | Power consumption | 2.0KW | 15.5KW | ||
| 11 | (Main Material | SUS304 | |||
| 12 | Water tank material and volume | SUS304 Single tank / Volume=100L （2pcs） | |||
| 13 | Motor type | SUS304 Pump | |||
| 14 | Temperature prode | NTC | |||
| 15 | Temperature control mode | STC-200/ Korea Autonics TCN4M | |||
| 16 | Time setting way | Siemens PLC1200 | |||
| 17 | Connect type | water inlet and drain outlet | 1.5″ Tri-clamp | Steam inlet | DIN male fitting |
| 18 | Spear type | A | S | D | G |
| 19 | Keg type | EURO DIN AMERICAN 20L-60Lkeg | |||
| 20 | Filling measurement type | Flow Switch | Flow Meter | ||
| 21 | Washing part inlet with pressure detection or not | Yes | Yes | ||
| 22 | Washing part outlet with the residual liquid detection or not | Yes | Yes | ||
| 23 | Washing working procedure | Lock down → air purge/drain off → hot water washing→ air purge/drain off → caustic washing → air purge/to caustic tank → hot water 1 washing → air purge/drain off → hot water 2 washing → air purge/drain off →sanitizer sterilize →CO2 purge/to sanitizer tank→CO2 fill | |||
| 24 | Filling working procedur） | Lock→ CO2 Fill→ Filling→Stop | |||
| 25 | Package | Composite board boxes | |||
| 26 | Lead time | 40 days | |||
