NFE company will attend the BrewCon 2023 at the Gold Coast Convention and Exhibition center on 21th-23th Aug, and booth no.: 69 th, we will show one set 500L electric brewhouse system and 2x150L jacketed beer unitanks, and specification for the 500L electric skid mounted brewhouse as follows:

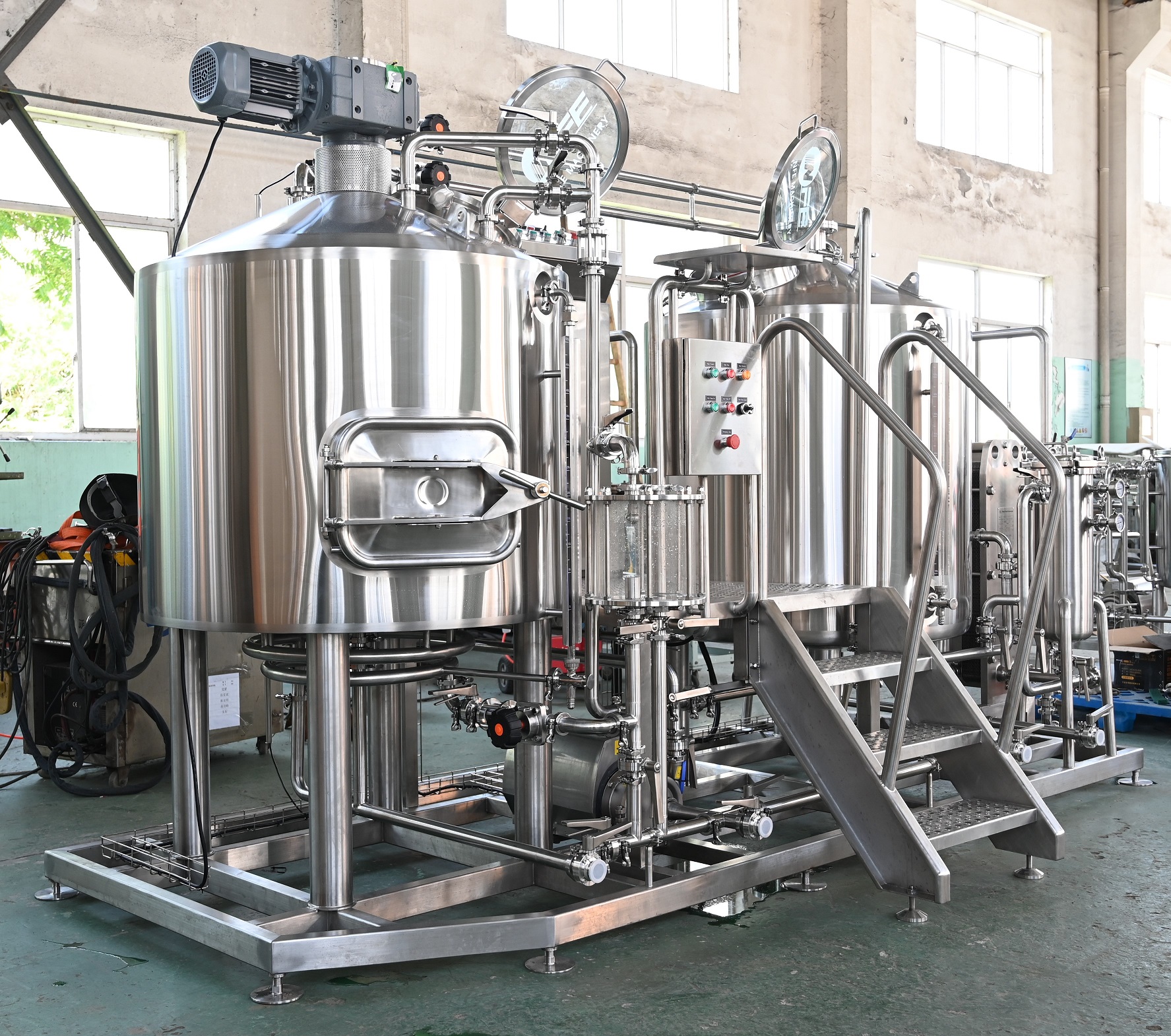

500L Electric skid mounted brewhouse:

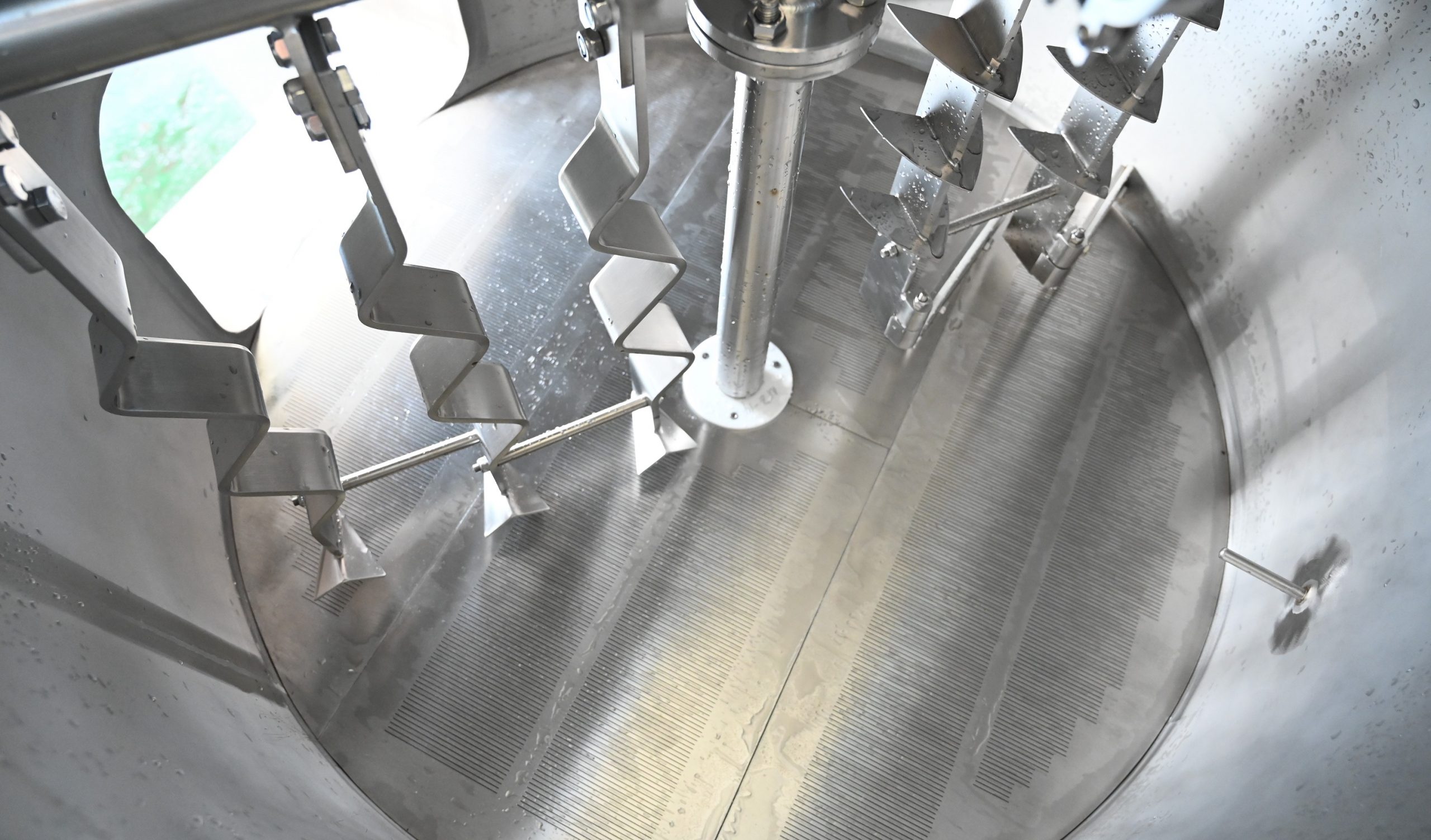

1.Mash/lauter – grist hydrator, false bottom, rake, sparging system

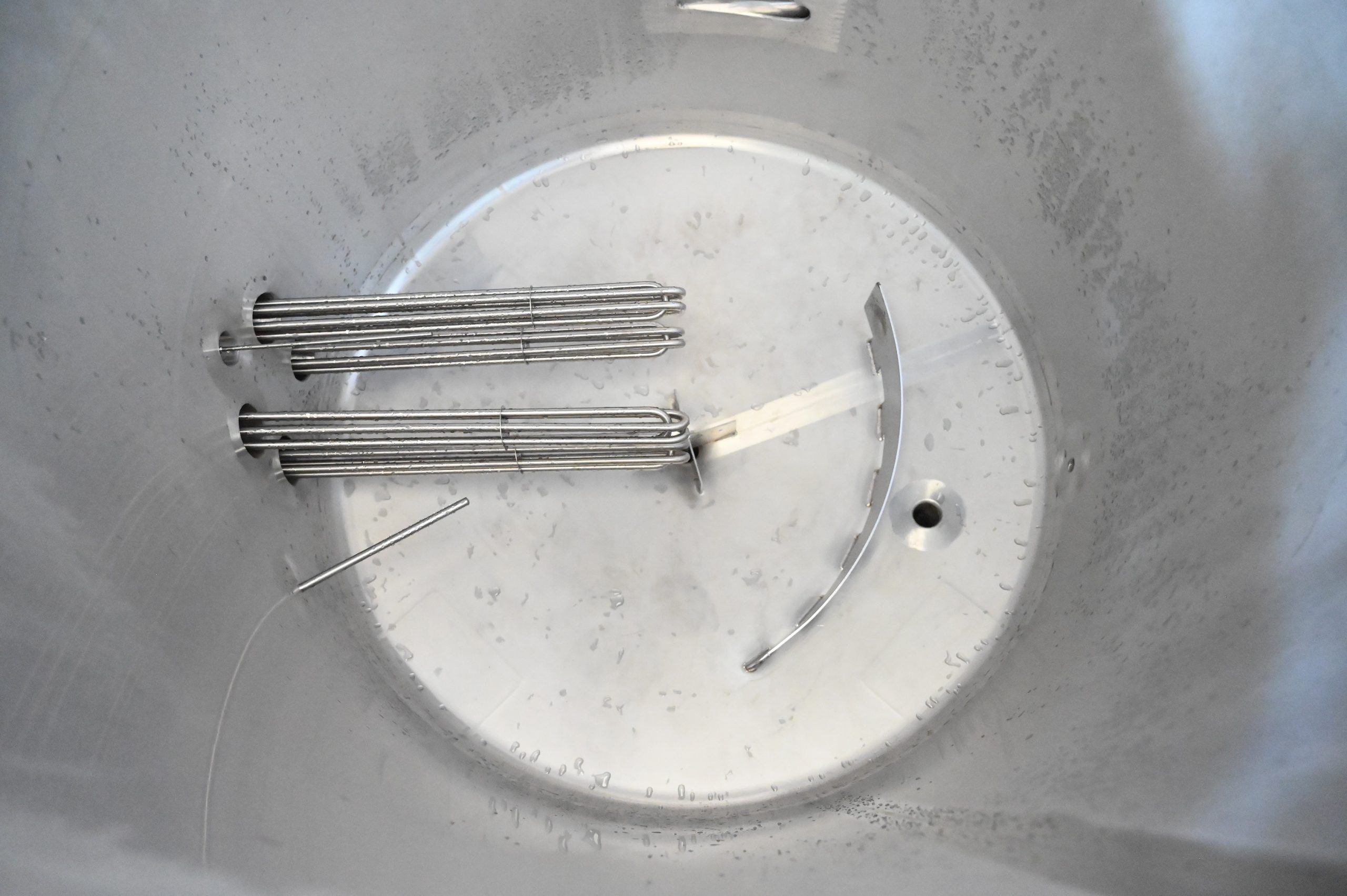

2.Wort kettle/whirlpool tun –electric heating, and heating power is 32kw, and there is one electric heating element for spare, tangential entry

3.Indoor steam condensation stack for boiling kettle
4.Wort Pumps with ABB motor(capacity: 5m3/hour and pump lift for 24meters)
5.Stainless steel 304 working platform
6.6m2 Plate heat exchanger – 304 plates, 2stages, with wort oxygenate system
7.Wort grant, hops back
8.Pipelines & valves

9.Manual button control system, CE Rated Controls and electrical components

10.Meet the Australian electric requirement for 415V, 50HZ, 3phases

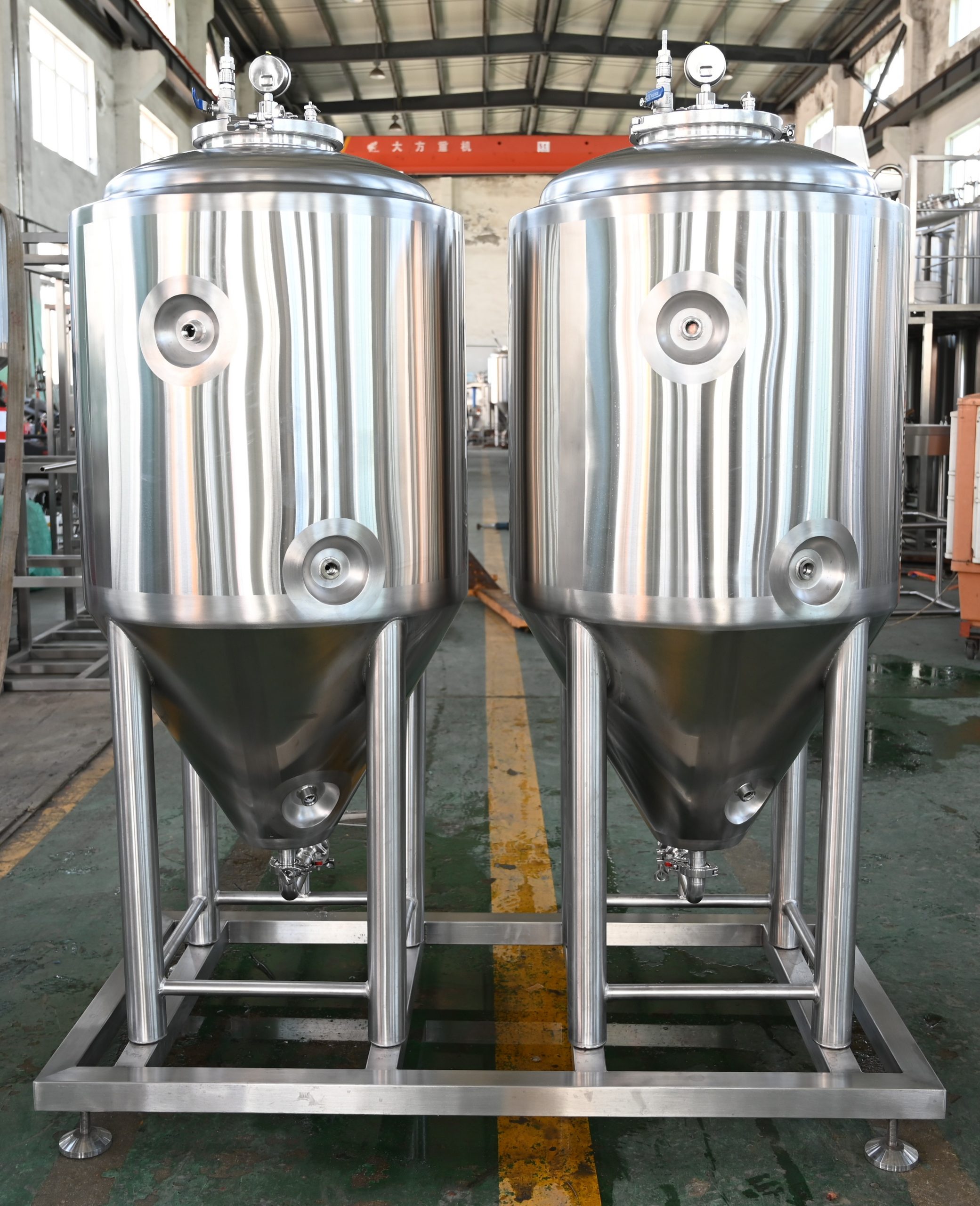

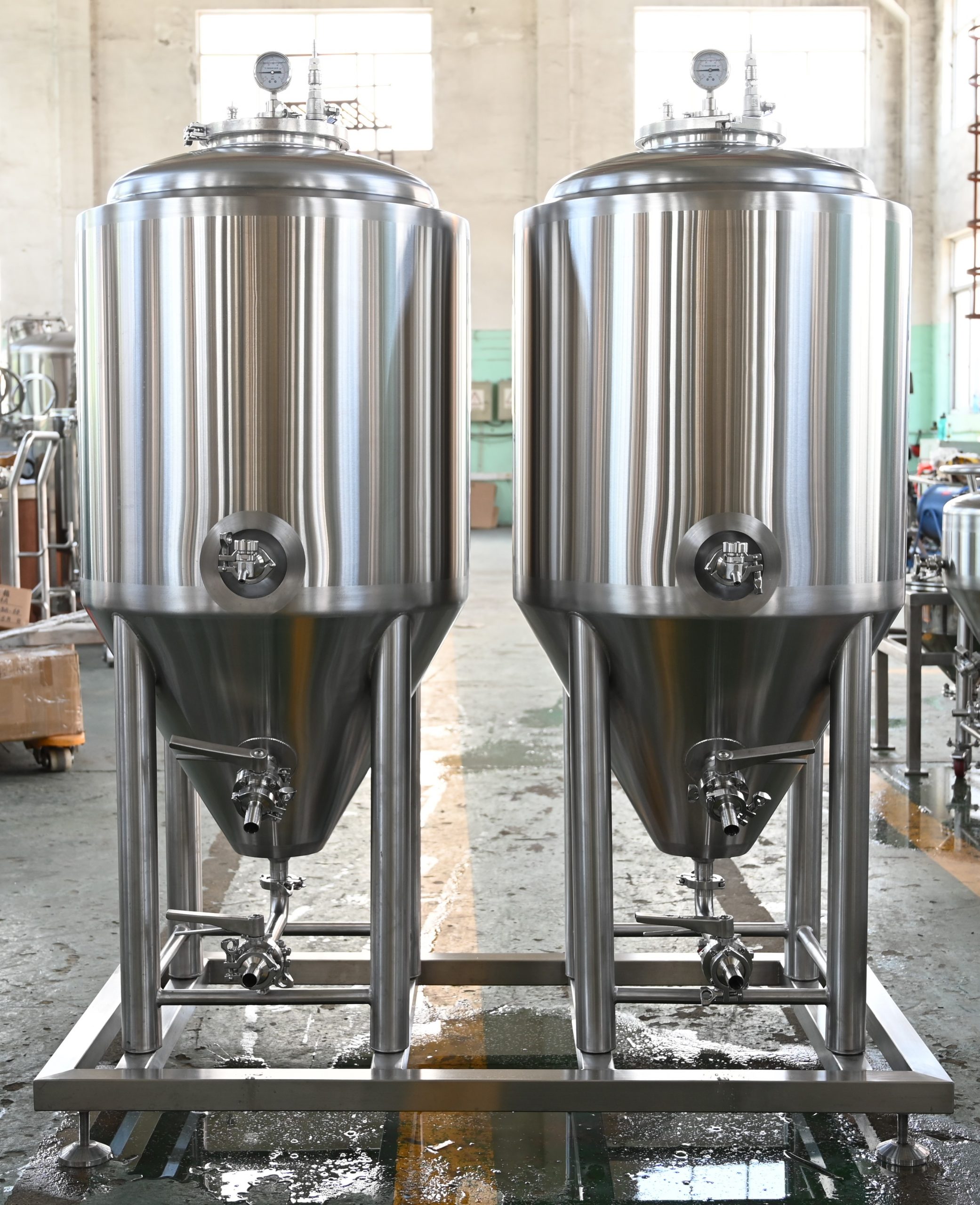

The specification for 2x150L beer unitanks:

1.Effective capacity: 150l, total capacity:198L, 25% top space;

2.Stainless steel 304;

3.Dome top head, cone bottom;

4.Top manway;

5.Surface brushed, welding line polish sanding light belt;

6.Polyurethane insulation, thickness: 50mm;

7.Inner body thickness 3mm, cladding thickness 2mm;

8.Double dimple plate cooling jackets, on wall and cone;

9.Working pressure is 2bar and testing pressure is 3bar;

10.With rotary CIP spray balls and arm;

11.PT100 temperature sensor;

12.1’’Sample valve in the cylinder;

13.Separate outlets for yeast and clear beer, beer racking arm located in the conical part of the tank

14.PVRV;

15.Pressure gauge;

16.Carbonation stone device;

17.Stainless steel legs with screw assembly to adjust leg height.

If you attend this exhibition, hope we see you there, let us have more communication!
