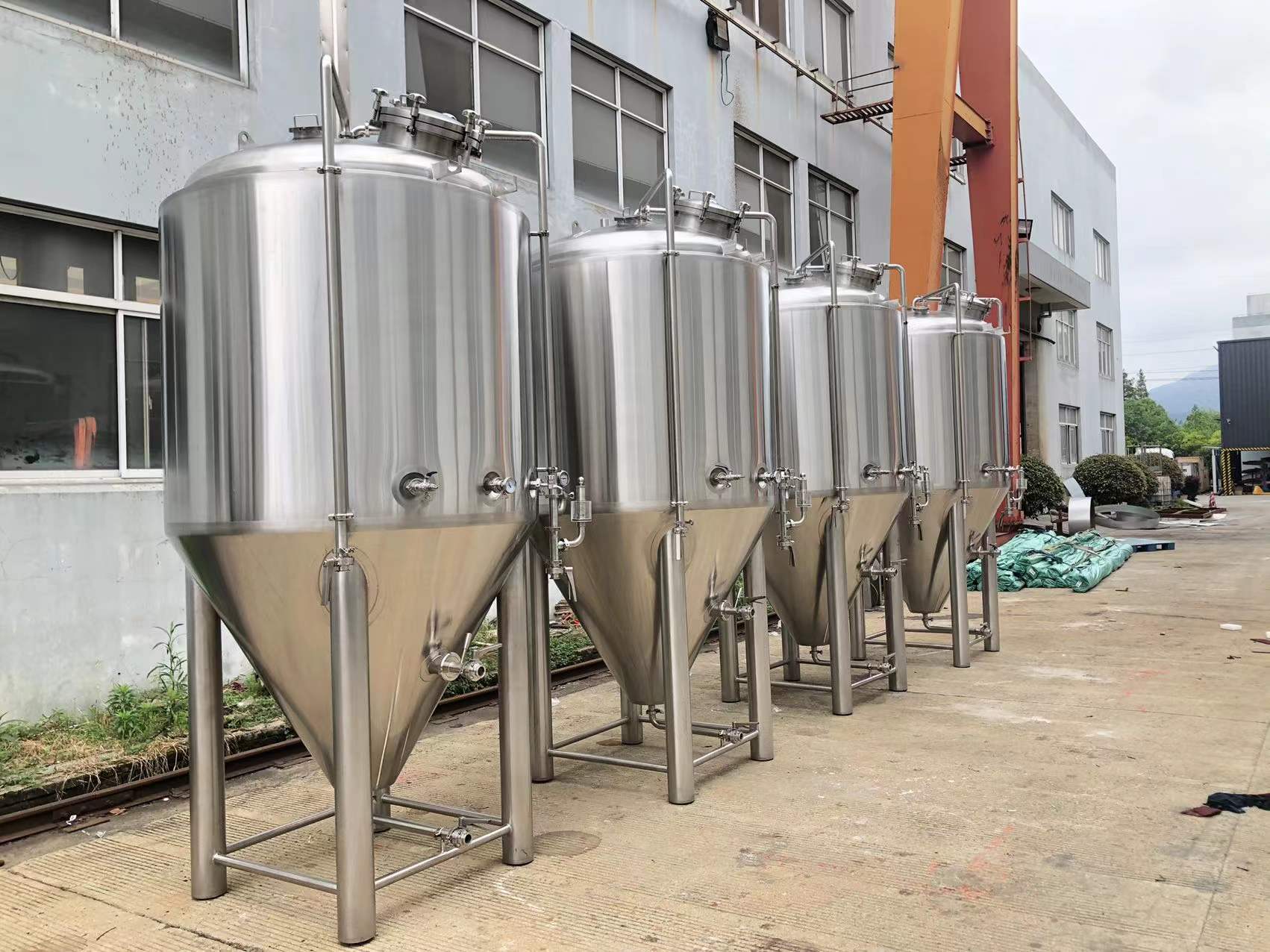

One of customer from PA 19122 and order some 15bbl beer unitanks, the tanks’ specification as follows:

1.Sanitary Stainless steel 304,

2.Effective capacity: 15BBL, 25% top space;

3.Dome top head, cone bottom;

4.Surface brushed, welding line polish sanding light belt;

5.Polyurethane insulation, thickness: 80mm;

6.Inner body thickness 3mm, cladding thickness 2mm;

7.Double dimple plate cooling jackets(on wall and cone);

8.Top manway;

9.Tanks with spunding valves;

10.With rotary CIP spray balls and arm;

11.The tank will have a CIP arm;

12.Pt100 temperature sensor;

13.4’’Dry hopping port on top head;

14.1.5’’Sample valve in the cylinder;

15.Separate outlets for yeast and clear beer, beer racking arm located in the conical part of the tank

16.2’’PVRV;

17.The tank will have a cip arm and one for blowing off co2;

18.Pressure gauge;

19.ladder hooks;

20.1.5’’ Carbonation stone;

21.Working pressure is 2bar and testing pressure is 3bar;

22.Stainless steel legs with bigger and thicker base plate, with screw assembly to adjust leg height;

23.Complete with associated valves and fittings.

NFE company is manufacturing brewery equipment in China for 10years, we are a custom stainless steel fabricator, manufacturing quality brewing equipment, so if you are looking for turnkey brewing system or only require with brewhouse or beer fermenters or brite beer tanks? please tell us your requirement, so that we can custom-made for you.
