The distiller is designed to meet the needs of start-up distilleries or be used as an advanced test still for established distilleries for whiskey, gin, fruit brandy, rum,wine spirit and there is a possibility to produce vodka with additional vodka column.
Heating Method: steam heating or electric heating
Use union or tri-clamp connection, easy to install and clean the distilling equipment after a run.
Distillation column red copper column with 5 plate red copper bubble caps

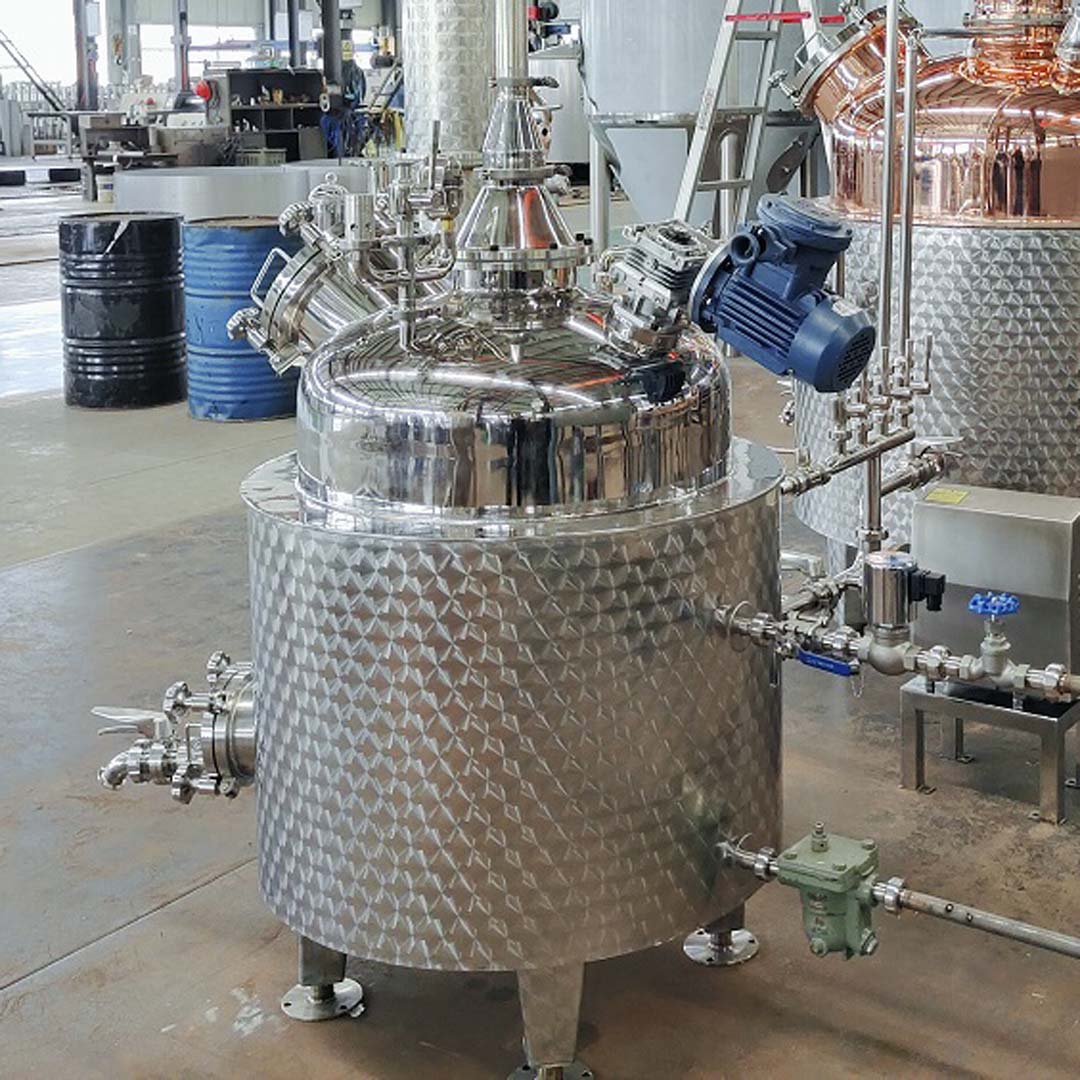

Still pot: copper inner tank, stainless steel cladding, with explosion proof agitator motor, full glass manway
Copper Whisky helmet
Copper columns: copper made with 5 plates
Stainless steel 304 condenser and pipes
Support base, water tank and product tank are made as support base
Application: it can make sure you get function of distilling whisky, brandy, gin and vodka etc.
Spirit type
|
Capacity
|
Components
|
Whisky distiller
|
50-5000L
|
Still pot, swan neck, condenser, CIP, pipe system
|
Vodka distiller
|
50-5000L
|
Still pot, onion head, column, dephlegmator, condenser, CIP, pipe system
|
Brandy distiller
|
50-5000L
|
Still pot, onion head, column, dephlegmator, condenser, CIP, pipe system
|
Rum distiller
|
50-5000L
|
Still pot, column, condenser, CIP, pipe system
|
Gin distiller
|
50-5000L
|
Still pot, column, gin basket, condenser, CIP, pipe system
|
Multi-spirits distiller
|
50-5000L
|
Still pot, onion head, column, gin basket, dephlegmator, condenser, CIP, pipe system
|
Distiller pot: Inner full copper pot, outer steam jacket with insulation layer, outer layer with fish scale polish, full glass manhole to see, top with agitator stirring.Column plates: full copper bubble plates, side with pass valve to operate, CIP ball insert to each plate to clean, back with cip pipe and valve to operate.
Bubble caps :It consists of bubble caps, down comers, bubble plate, red copper screw and bubble tee (with stainless steel 304 and red copper options)
Bottom collect tanks: water tank to collect condenser water to cycle used with CIP clean, alcohol tanks direct to collect from parrot, bottom connect one water pump.
Control panel: The material of control panel is stainless steel 304;
Parrot spout with high sanitary glass cover, top is copper lid, direct to open, bottom with valve.
