2x60bbl beer fermenters+2x3bbl single wall brite tanks+1x100L unit system for Guatemala Customer is Delivered Today!  It only took one week for the customer to contact us and place the order, because this customer require the tanks urgently, it happens that we have the tanks in stock, besides our tanks can be meet their requirement, so they confirmed the order very soon!

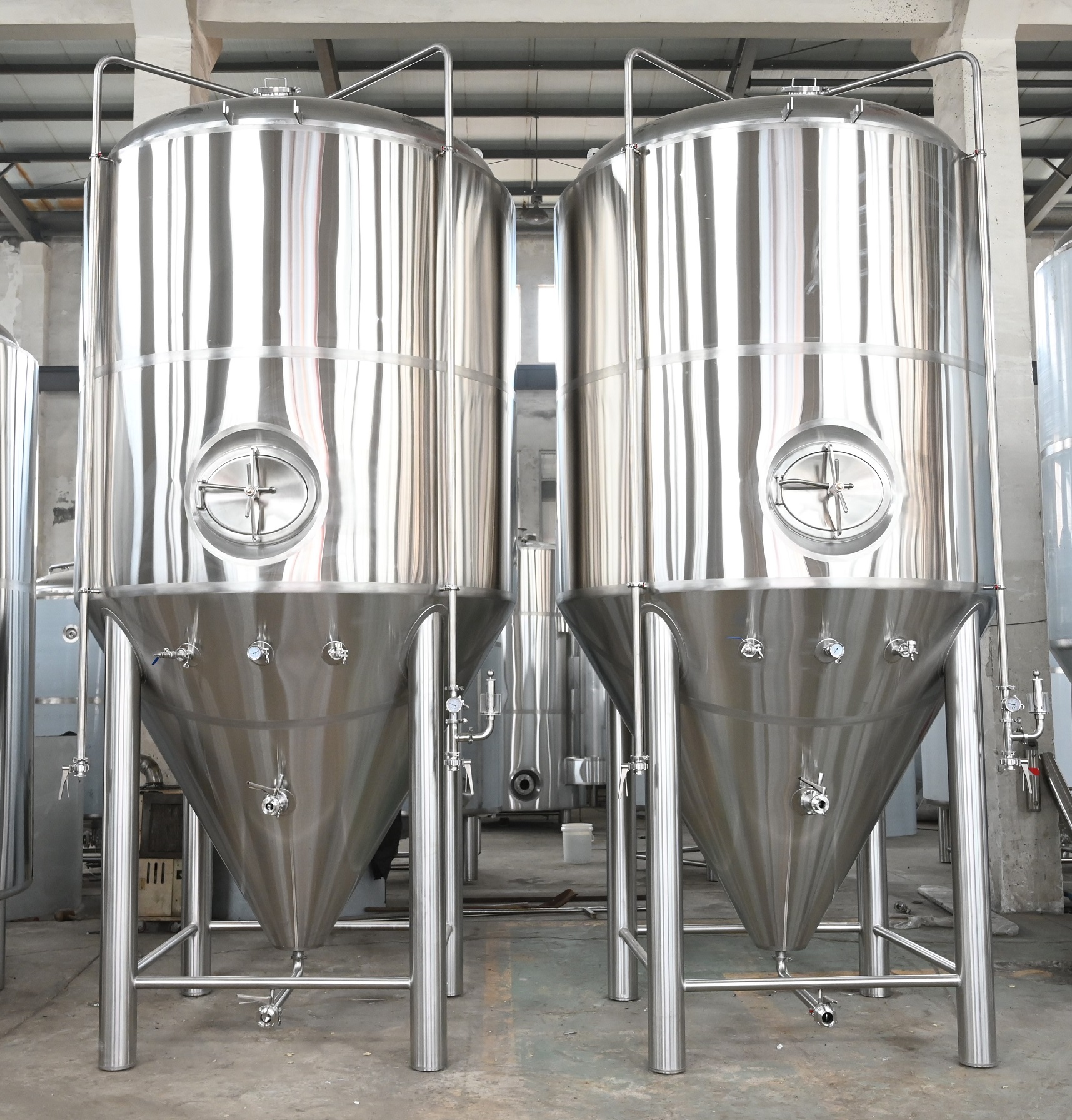

The specification for the 60bbl beer fermenters as follows:

1.Sanitary Stainless steel 304;

2.Effective capacity: 60BBL;25% headspace;

3.Dome top head, cone bottom;

4.Surface brushed, welding line polish sanding light belt;

5.Polyurethane insulation, thickness: 80mm;

6.Inner body thickness 3mm, cladding thickness 2mm;

7.Double dimple plate cooling jackets(on wall and cone);

8.Side manway;

9.With rotary CIP spray balls and arm;

10.Pt100 temperature sensor;

11.6’’Dry hopping port on top head;

12.Sample valve in the cylinder;

13.Separate outlets for yeast and clear beer, beer racking arm located in the conical part of the tank;

14.2’’PVRV;

15.Spunding valve;

16.Pressure gauge;

17.1.5’’Carbonation stone;

18.2ladder hooks;

19.Working pressure is 2bar and testing pressure is 3bar;

20.Stainless steel legs with bigger and thicker base plate, with screw assembly to adjust leg height;

21.Complete with associated valves and fittings.

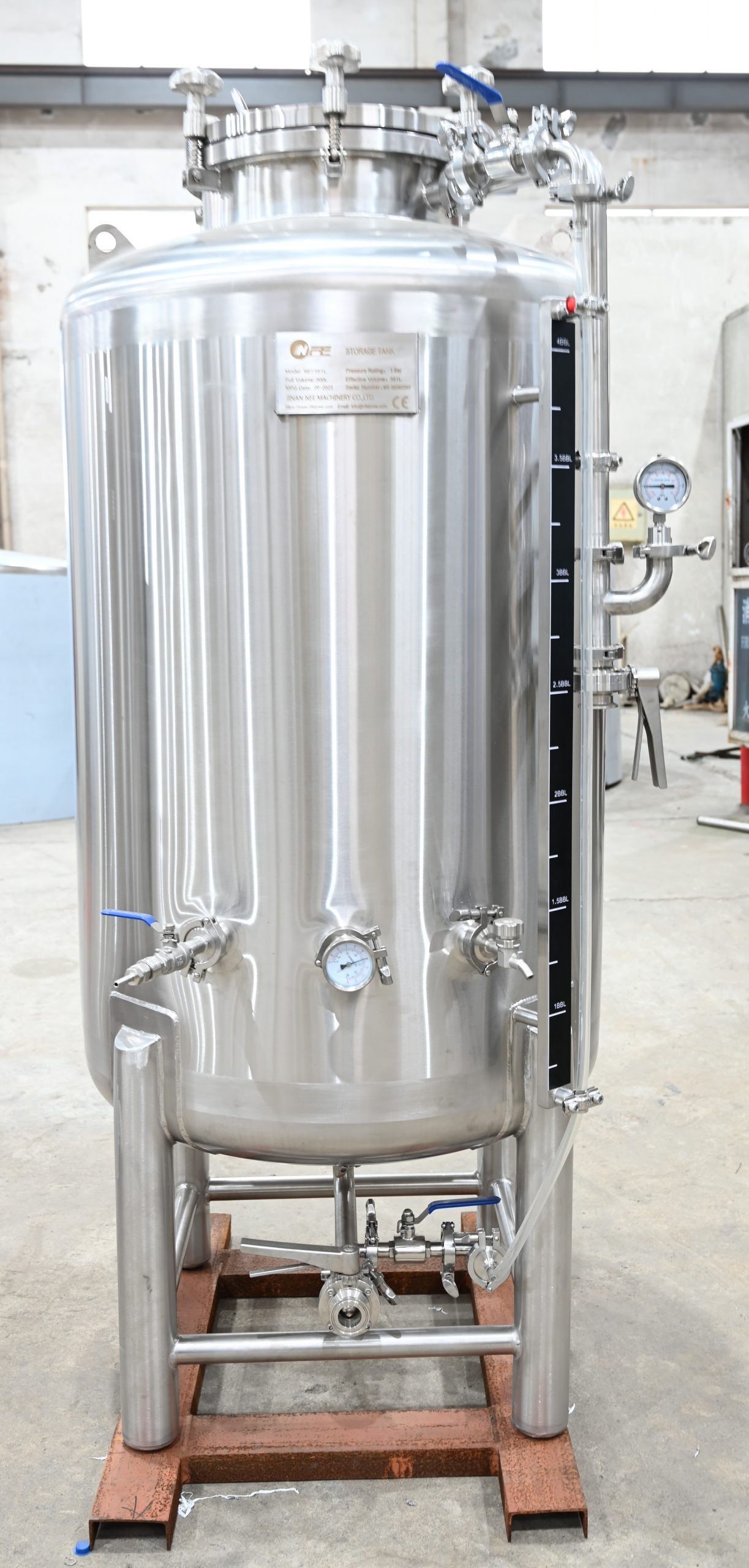

The specification for our 3bbl single wall brite tanks as follows:

1.Sanitary Stainless steel 304

2.Effective capacity:3BBL;

3.Outer dimension: ￠750mmx1799mm,

4.Dome top head and dome bottom;

5.Surface brushed, welding line polish sanding light belt;

6.Body thickness 3mm;

7.Working pressure:2bar, testing pressure:3bar;

8.2’’PVRV;

9.Top manway;

10.With rotary CIP spray balls and arm;

11.1.5’’Sample valve;

12.Pressure gauge;

13.Liquid level meter;

14.1.5’’Carbonation stone;

15.Stainless steel legs with bigger and thicker base plate, with screw assembly to adjust leg height;

16.Complete with associated valves and fittings.

If you require the tanks urgently, please contact with us, and NFE also have some tanks in stock as follows:

2x60bbl beer fermenters with side manway

2x60bbl brite tanks with side manway

1x30bbl beer fermenter with side manway

4x30bbl beer fermenters with top manway

3x30bbl brite tank with side manway

3x15bbl beer fermenters with side manway

5x15bbl brite tanks with side manway

NFE company can be a good choice for a beer brewing equipment supplier due to our quality products, commitment to customer service, and ability to customize our equipment to meet the needs of ours customers. if you’re in the market for commercial brewing equipment, NFE company is worth to be considered.
